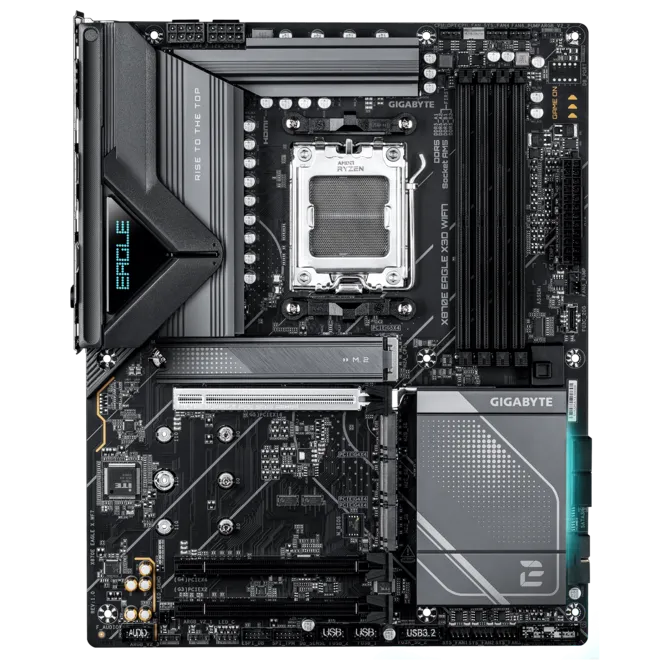

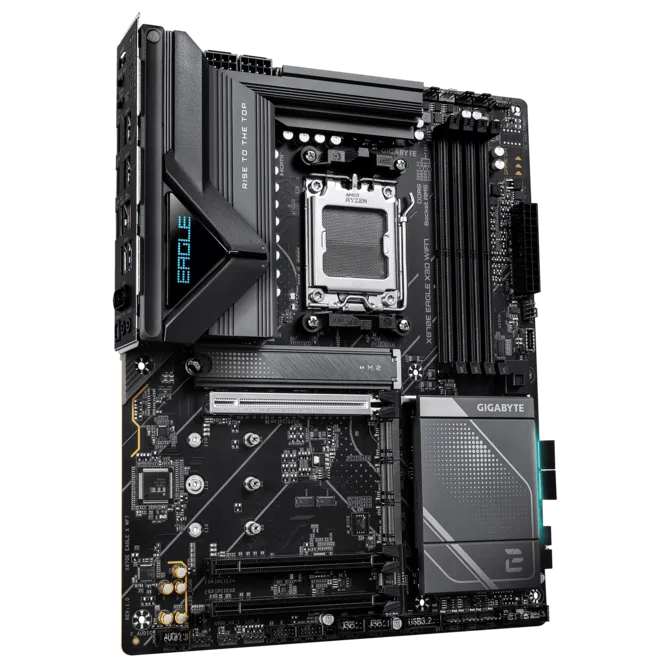

Gigabyte X870E Eagle X3D WIFI7 ATX Motherboard
Features:
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- DDR5 OC up to 9000MT/s
- DriverBIOS: Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
- AMD Socket AM5 Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5:4*DIMMs with AMD EXPO Memory Module Support
- M.2 EZ-Flex igHigh-efficiencyeat dissipation & flexible baseplate for M.2 SSD (Exclusive Patented Design)
- WIFI EZ-Plug Qi: Quick and easy design for Wi-Fi antenna installation
- PCIe EZ-Latch Plus PCPCIelots with Quick Release & Screwless Design
- EZ-Latch Plus: M.2slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 eatsinks with screwless design
- Friendly UI MultiTheme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage:4*M.2 lots, including PCIe 5.0 x4
- Efficient Thermal: VRM TThermalArmorvanced & M.2 Thermal Guard Ext.
- Fast Networking : 5GbE LAN& Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Dua USB4 Type-C with DP-Alt
- PCIe UD Slot : PCIe 5.0 x6 slot with 10X strength for graphics card
Specification:
| Motherboard | |
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryz en 7000 |
| Chipset | X870E |
| Memory Speed | up to 9000 |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual-channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD Extended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to “Memory Support List” on GIGABYTE\’s website for more information.) |
| Graphics Port | 2 x USB4 USB Type-C, 1 x HDMI |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2B_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2B_SB connector. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) |
| Wireless Networking | Wi-Fi 7,Bluetooth 5.4 |

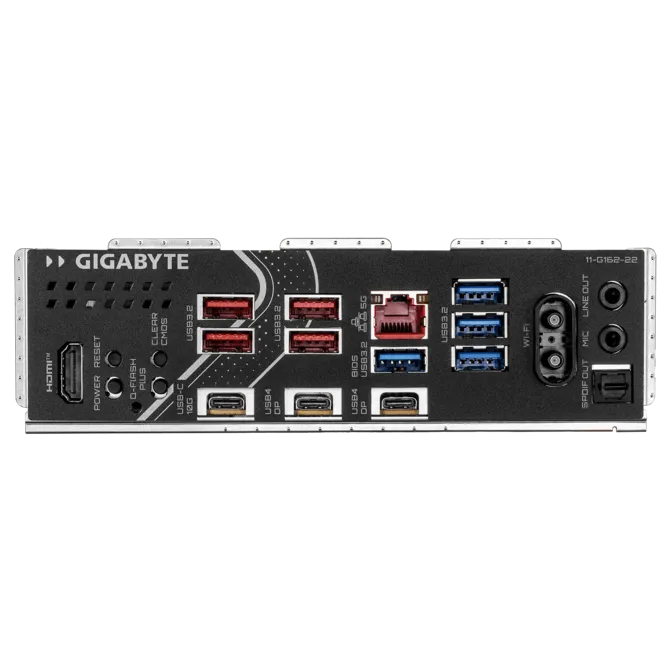

| Back Panel I/O Ports | 1 x HDMI port 1 x reset button 1 x power button 1 x Clear CMOS button 1 x Q-Flash Plus button 4 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB4 USB Type-C ports 1 x RJ-45 port 4 x USB 3.2 Gen 1 ports 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
| Internal I/O Connector | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x noise detection header |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | ***Features, pricing, and specifications are subject to change without notice, and items may sometimes be out of stock. |
| Weight | 3 kg |
|---|---|
| Dimensions | 35 × 35 × 12 cm |
| Brand |
Gigabyte |
| Color type |
BLACK |
| Chipset |
X870 |
| Form factor |
ATX |
| Max memory support |
256GB |
| Multi gpu support |
3 WAY |
| Platform |
AMD |
| Socket |
AM5 |
| Warranty |
3 Years |
| Memory type |
DDR5 |
