MSI Pro B650M-B M-ATX Motherboard
Original price was: ₹16,999.00.₹9,100.00Current price is: ₹9,100.00.
1 in stock
1 in stock
- Free Delivery All over India
- 24/7 Customer Support
- 100% Secure Checkout
- Free Delivery All over India
- 24/7 Customer Support
- 100% Secure Checkout
MSI Pro B650M-B M-ATX Motherboard
Features:
- Supports AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specifications:
| Â Model Name | Â PRO B650M-B | |
| Â Chipset | Â AMD B650 | |
| Â CPU | Supports AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series Desktop Processors Socket AM5 | |
|  Memory | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6000+ MHzSupports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO | |
| Â Onboard Graphics | 1x HDMIâ„¢ Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x VGA Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz | |
| Â Slot | Â 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) | |
| Â Storage | Â 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G | |
| Â RAID | Â Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices | |
| Â USB | Â 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) | |
|  LAN |  Realtek® RTL8125BG 2.5G LAN | |
|  Audio |  Realtek® ALC897 Codec 7.1-Channel High Definition Audio | |
| Â Internal IO | Â 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports | |
| Â LED FEATURE | Â 4x EZ Debug LED | |

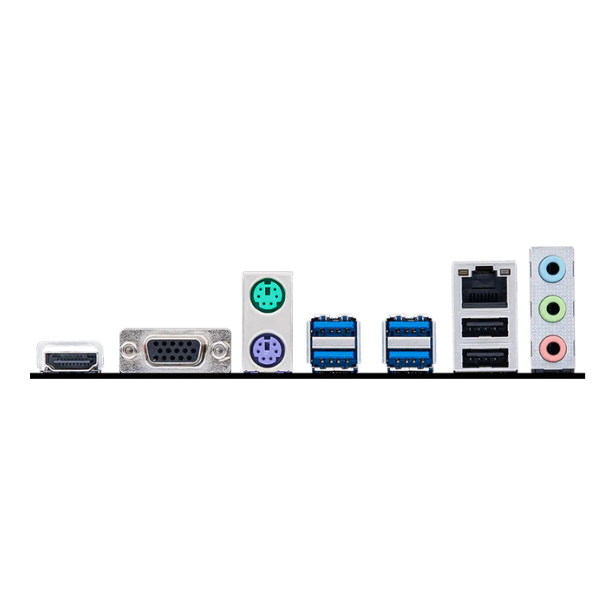

| Â BACK PANEL PORTS | HDMIâ„¢ VGA Keyboard/Mouse USB 3.2 Gen 1 5Gbps (Type-A) LAN port Audio connectors USB 2.0 | |
|  OPERATING SYSTEM |  Support for Windows® 11 64-bit, Windows® 10 64-bit | |
| Â PCB Info | Â mATX 215mmx243.84mm | |
| Â Warranty | 3 Years | |
| Note |
|
| Weight | 3 kg |
|---|---|
| Dimensions | 35 × 35 × 12 cm |
| Brand |
MSI |
| Color type |
BLACK |
| Chipset |
B650 |
| Form factor |
Micro-ATX |
| Max memory support |
96 GB |
| Platform |
AMD |
| Socket |
AM5 |
| Warranty |
3 Years |
| Memory type |
DDR5 |
| Multi gpu support |
1 WAY |
