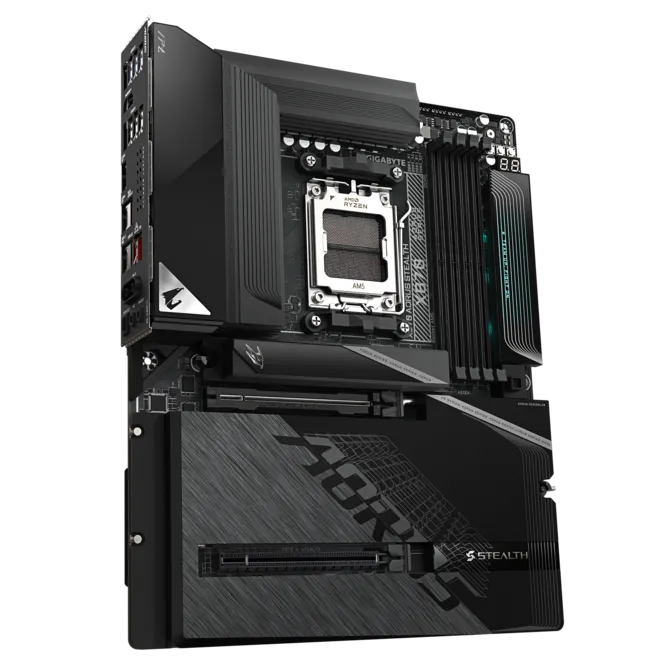

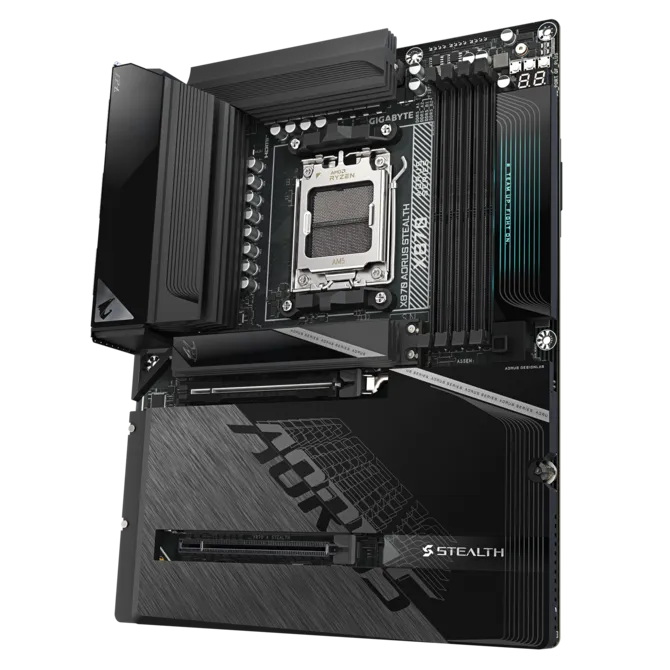

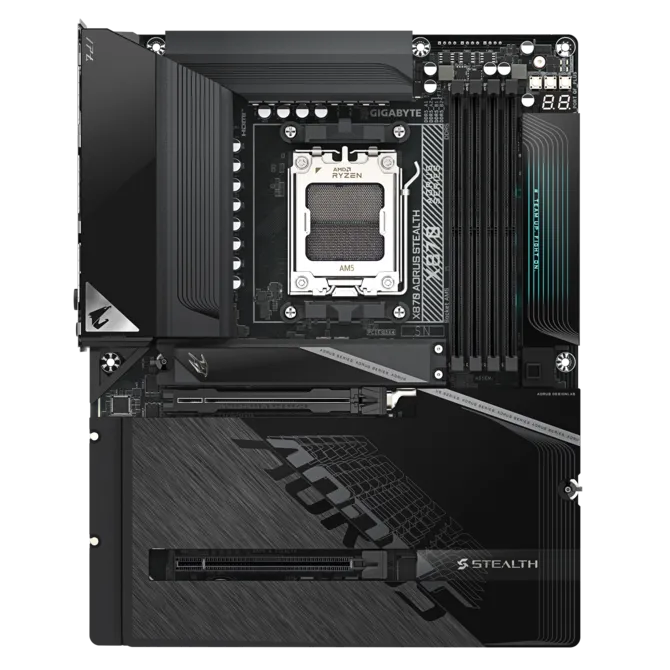

GIGABYTE X870 AORUS STEALTH ATX Wi-FI 7 Motherboard

Features

• GIGABYTE X3D Turbo Mode: Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• DriverBIOS Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
• AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• Digital twin 16+2+2 phases VRM solution
• Dual Channel DDR5: 4*DIMMs with AMD EXPO™Memory Module Support
• M.2 EZ-Flex: High-efficiency heat dissipation & flexible baseplate for M.2 SSD (Exclusive Patented Design)
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus: PCe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click: M.2heatsinks with screwless design
• Friendly UI: Mult-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage: 4*M.2slots, including PCIe 5.0 x4
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
• Fast Networking 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt
• PCIe UD Slot: CIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect

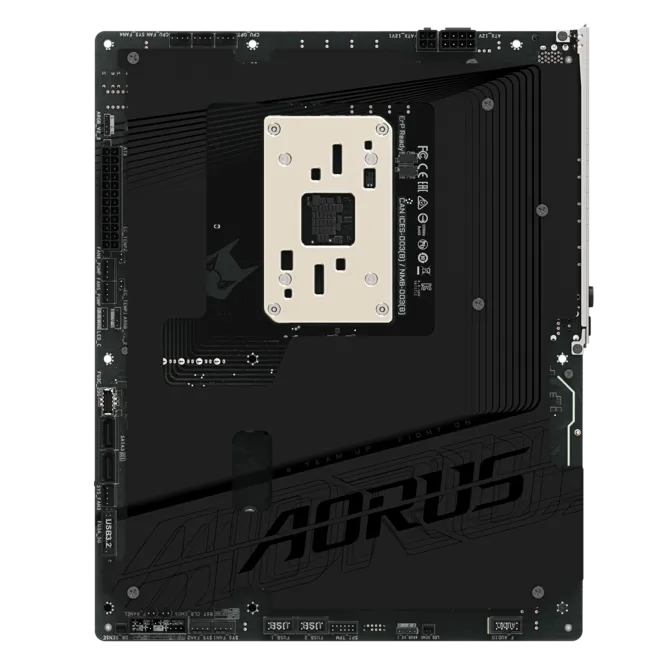

• UD Base Plate: Experience the protection and heat dissipation with the UD Base Plate.

No.1 Chassis Compatibility

Maximized Chassis Compatibility

The STEALTH series excels in high chassis compatibility, supporting numerous manufacturers. It enables PC DIY enthusiasts and gamers alike to effortlessly assemble personalized computer setups without constraints.

Brand New Gaming Experience

X3D Turbo Mode

Unleash New Era Gaming Performance with One-Click Activation.

X3D Turbo Mode’s unique optimization parameters allow even Ryzen™ 9000 X3D gaming performance to be enhancedzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE’s BIOS innovation- X3D Turbo Mode.

One-Click Acceleration:Enhance Gaming FPS Performance with a single click.

Memory

Zenith Memory Performance

STEALTH series gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Specification

Specification	Details
CPU Support	AMD Socket AM5: Ryzen™ 9000/8000/7000 Series (check GIGABYTE site for latest)
Chipset	AMD X870
Memory	4 x DDR5 DIMM up to 256 GB (64 GB single); DDR5 8200(O.C) to 4400 MT/s; Dual channel; Non-ECC un-buffered; AMD EXPO™/XMP support (check support list)
Onboard Graphics	AMD Radeon™ Graphics: 1 x HDMI (4096×2160@60 Hz, HDMI 2.1); ASMedia USB4®: 2 x USB4® Type-C (3840×2160@240 Hz, DP 1.4, HDR)
Audio	Realtek® ALC1220; HD 2/4/5.1/7.1-channel; S/PDIF Out; DSD support
LAN	Realtek® 5GbE (5/2.5/1 Gbps/100 Mbps)
Wireless	Qualcomm® Wi-Fi 7 QCNCM865 (802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz, 320 MHz); Bluetooth 5.4 (Windows 11 required for Wi-Fi 7)
Expansion Slots	CPU: 1 x PCIe x16 (PCIe 5.0 x16 / 4.0 x8/x4); Chipset: 1 x PCIe x16 (x4) (shares with M2D_SB)
Storage	M.2 (CPU): M2A_CPU (PCIe 5.0/4.0 x4/x2, 25110/22110/2580/2280); M2B_CPU (PCIe 5.0/4.0 x4/x2, 22110/2280, unavailable on Phoenix 2); Chipset: M2C_SB/M2D_SB (PCIe 4.0 x4/x2, 22110/2280); 2 x SATA 6Gb/s; RAID 0/1/5/10 (NVMe/SATA)
USB (Rear)	USB4®: 2 x Type-C; CPU: 1 x Type-C (Gen 2), 4 x Gen 1, 4 x 2.0; Chipset: 2 x Gen 2 Type-A (red)
USB (Internal)	1 x Type-C (Gen 2×2); 1 x Gen 1 header; 2 x 2.0 headers
Internal Connectors	Power: 24-pin ATX, 8/4-pin 12V; Fans/Pump: 1 x CPU fan, 1 x CPU OPT, 4 x SYS fan, 2 x SYS/WP; RGB: 3 x ARGB Gen2, 1 x RGB; Other: Front panel/audio, TPM, Q-Flash Plus, power/reset buttons, temp sensors, Clear CMOS

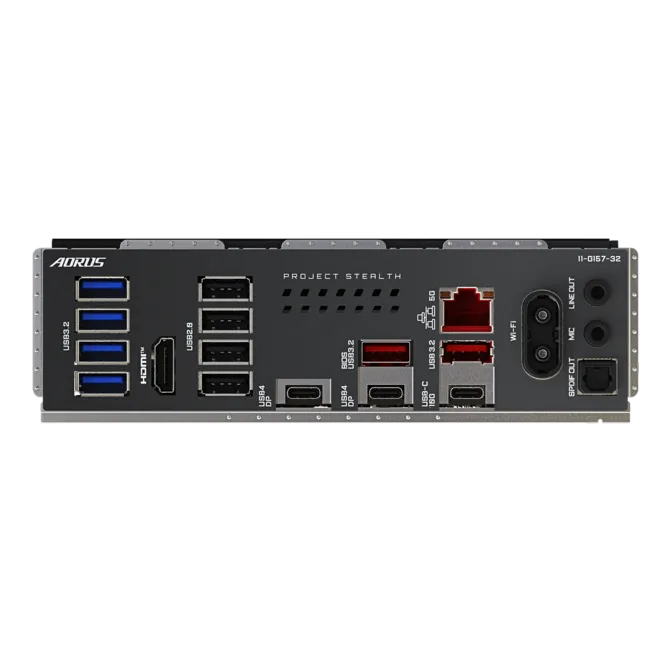

Back Panel	HDMI, 2 x antennas, 2 x USB4® Type-C, 1 x USB-C Gen 2, 2 x USB 3.2 Gen 2, 4 x Gen 1, 4 x 2.0, RJ-45, S/PDIF Out, 2 x audio jacks
I/O Controller	iTE® chip; H/W monitoring (voltage/temp/fan/flow, fail warning, control)
BIOS	AMI UEFI, 512 Mbit; PnP/DMI/WfM/SM BIOS/ACPI support
Unique Features	GIGABYTE Control Center, Q-Flash/Q-Flash Plus, Smart Backup
Bundled Software	Norton® Internet Security (OEM)
OS Support	Windows 11 64-bit
Form Factor	ATX (30.5 x 24.4 cm)
Warrany	3 years
