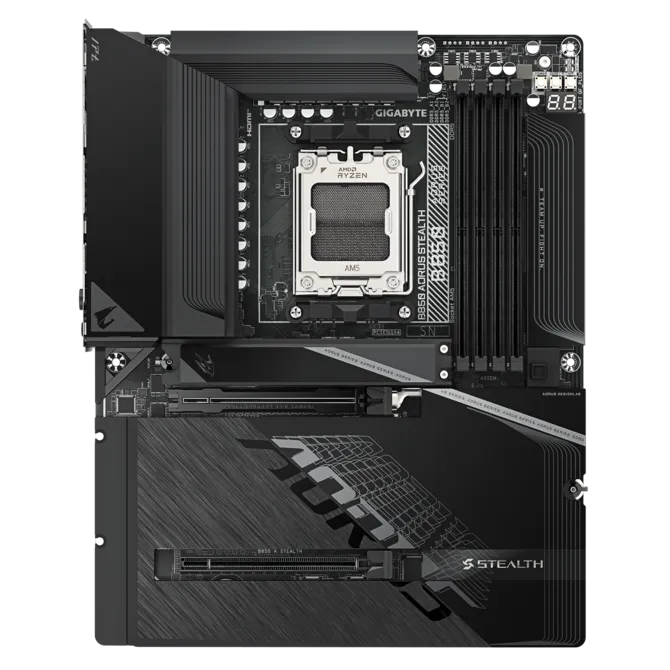

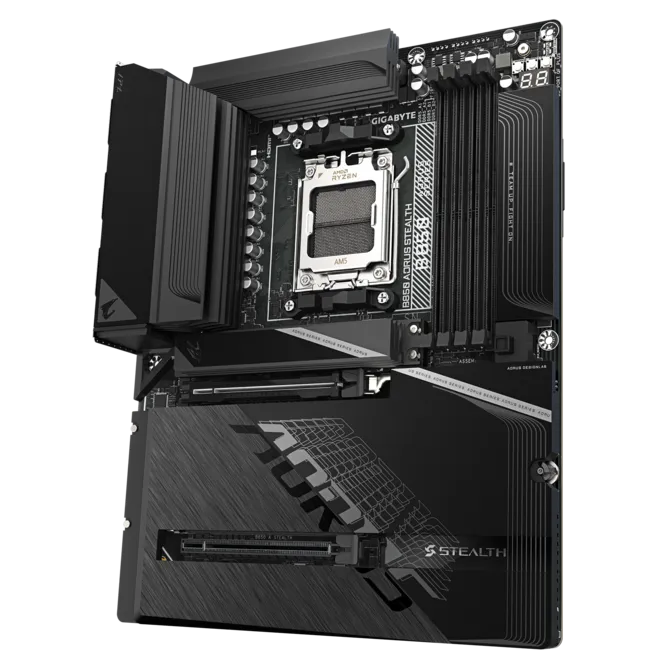

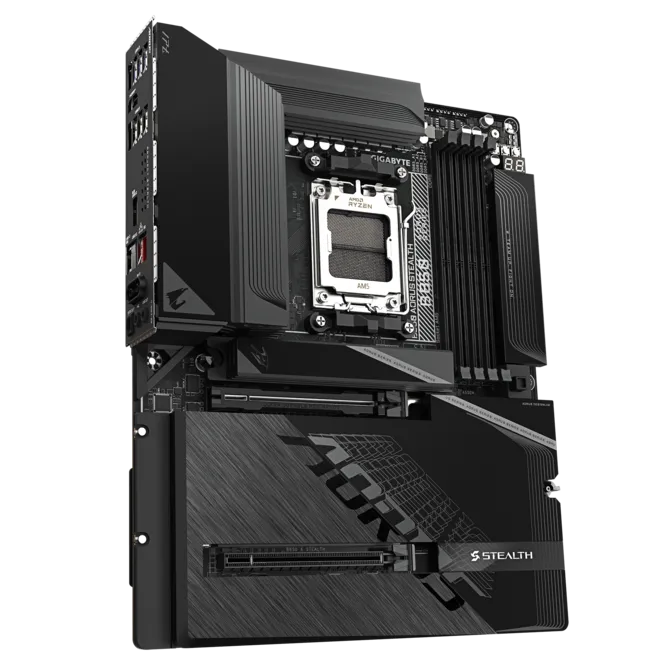

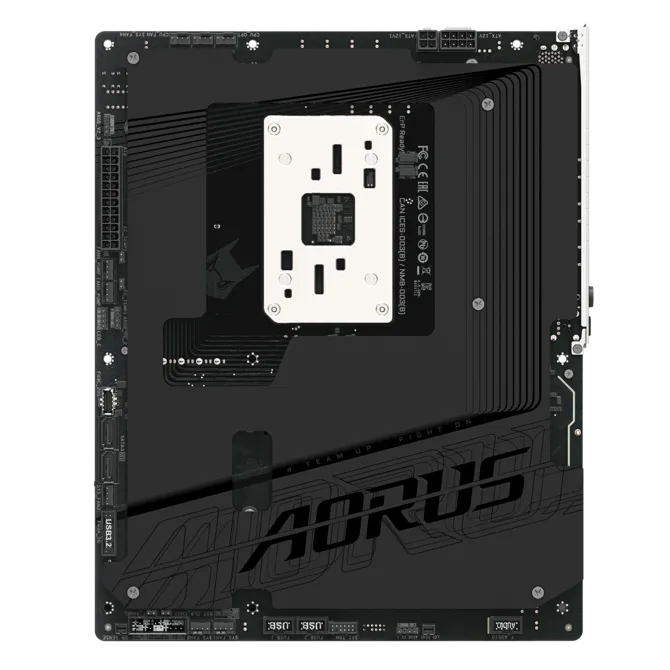

Gigabyte B850 Aorus Stealth WiFi7 ATX Motherboard

Gigabyte B850 Aorus Stealth WiFi7 ATX Motherboard

Features:

• X3D Turbo Mode: Unleash new era gaming performance
• DDR5 OC up to 8200MT/s
• DriverBIOS: Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
• AMD Socket AM5  Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital twin 14+2+2 phases VRM solution
• Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support
• M.2 EZ-Flex: high-efficiency heat dissipation & flexible baseplate for M.2 SSD
• (Exclusive Patented Design)
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click: M.2 heatsinks with screwless design
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• Ultra-Fast Storage: 4*M.2 slots, including PCIe 5.0 x4
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
• Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity: HDMI
• PCIe UD Slot: PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
• UD Base Plate: Experience the protection and heat dissipation with the UD Base Plate.

14*+2+2 Twin Digital VRM Design

• 6-Layer PCB
• Mid-Loss PCB
• 2X Copper PCBPremium Choke and Capacitor
• 7+7 phases parallel power design

Socket AM5 Supports AMD Ryzen Series Processors

4 x DIMMs, Dual Channel DDR5

Full-length PCIe slots

• 1 x PCIe 5.0 x16 with PCIe UD Slot
• 1 x PCIe 4.0×4

4 x M.2 Slots

• 2 x PCIe 5.0 M.2 Slot
• 2 x PCIe 4.0 M.2 Slots

X3D Turbo Mode

X3D Turbo Mode’s unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE’s BIOS innovation- X3D Turbo Mode.

Zenith Memory Performance

STEALTH series gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

Digital Twin VRM Design

Delivers consistent, high-powered performance to elevate your overclocking to the next level.

Specification:

Motherboard
Platform	AMD
Socket	AM5
Cpu Type	Ryzen 9000,Ry zen 8000, Ryzen 7000
Chipset	B850
Memory Speed	up to 8200
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD Extended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to “Memory Support List” on the Brand website for more information.)
Graphics Port	1 x HDMI port
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) * The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.
Wireless Networking	WiFi 7, Bluetooth 5.4

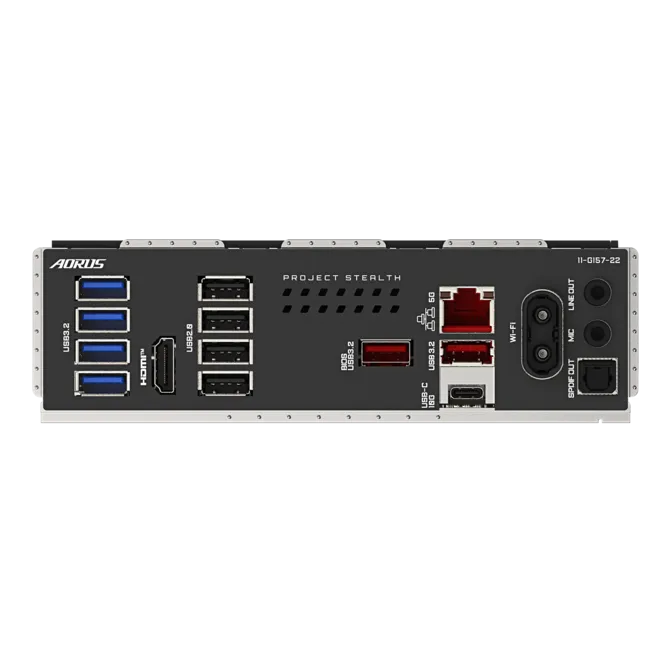

Back Panel I/O Ports	1 x HDMI port (Note) 2 x antenna connectors (2T2R) 1 x USB Type-C header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks (Note) Actual support may vary by CPU.
Internal I/O Connector	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2×2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x power button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper
Form Factor	ATX
Warranty	3 Years
Note	***Features, pricing, and specifications are subject to change without notice, and items may sometimes be out of stock.
