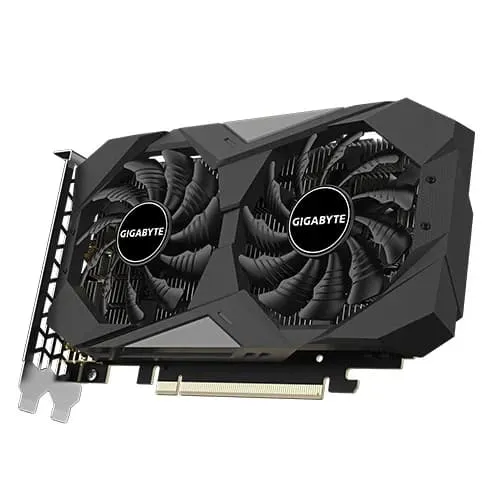

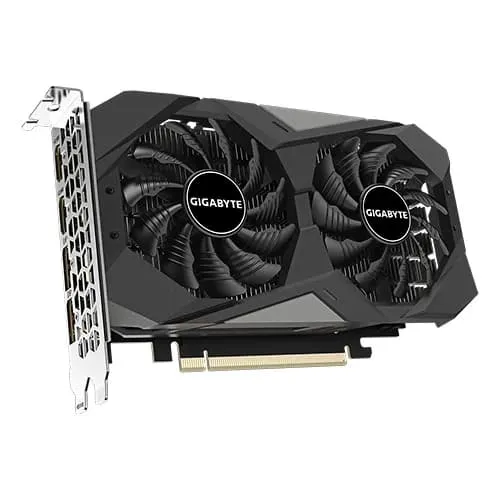

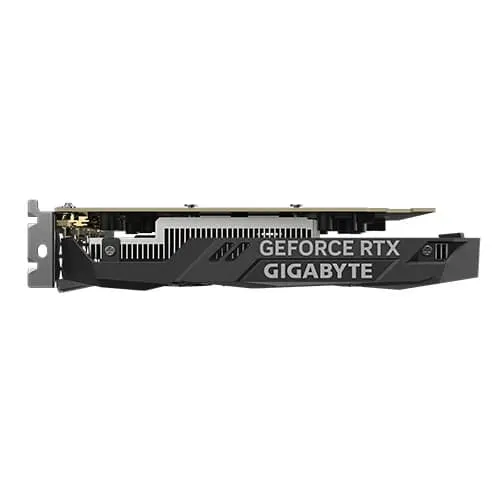

Gigabyte RTX 3050 Windforce OC V2 6GB Graphics Card

Features

• NVIDIA Ampere Streaming Multiprocessors
• 2nd Generation RT Cores
• 3rd Generation Tensor Cores
• Powered by GeForce RTX™ 3050
• Integrated with 6GB GDDR6 96-bit memory interface
• WINDFORCE cooling system

The WINDFORCE cooling system features two unique blade fans, alternate spinning and 3D active fan, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ULTRA COOLING

Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.

LOW POWER LOSS

Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.

LONGER LIFE

Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build

GRAPHICS

Model	GV-N3050WF2OCV2-6GD
Chipset	NVIDIA GEFORCE
GPU	RTX 3050
Engine Clock	1477 MHz (Reference Card: 1470 MHz)
PCI EXPRESS	4.0
MEMORY CLOCK	14000 MHz
MEMORY SIZE	6 GB
MEMORY INTERFACE	96-BIT
MEMORY TYPE	GDDR6
OpenGL	4.6
PORTS	HDMI,DisplayPort
DirectX	12 Ultimate
RESOLUTION	7680 x 4320
COOLER	Dual Fan
Max Display Support	4
Recommended PSU	300W
GPU CORE (CUDA CORE)	2304
WARRANTY	3 Years
