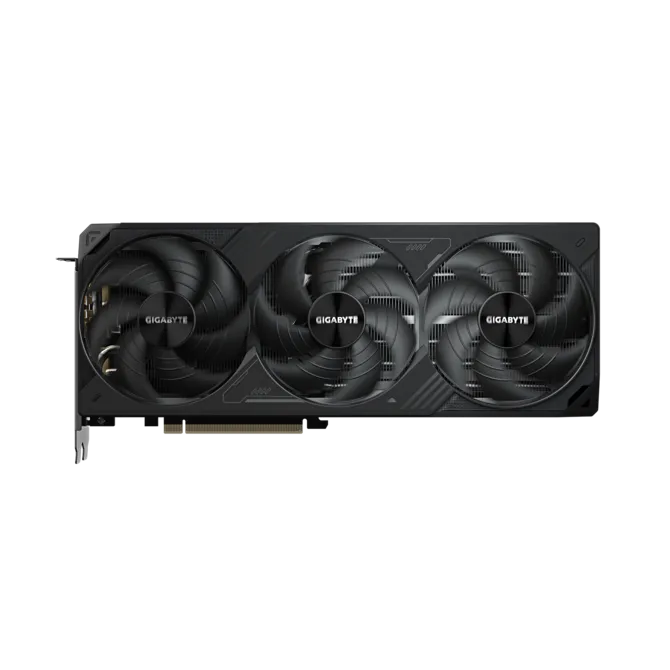

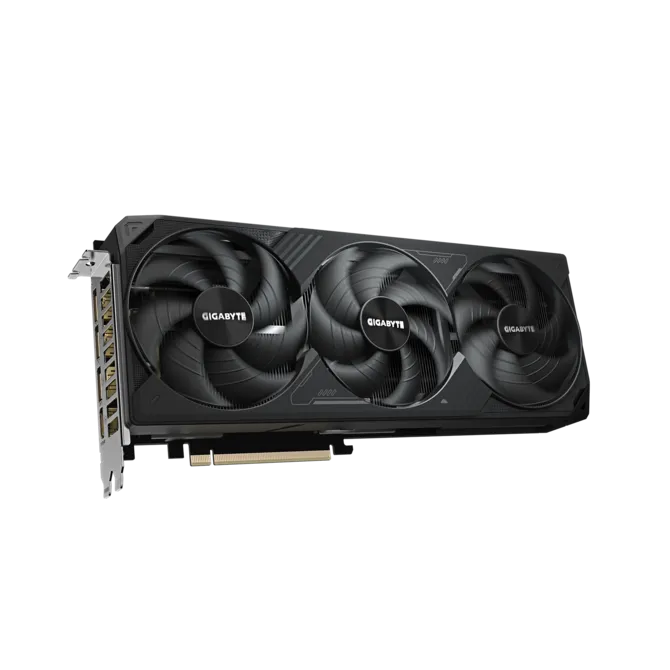

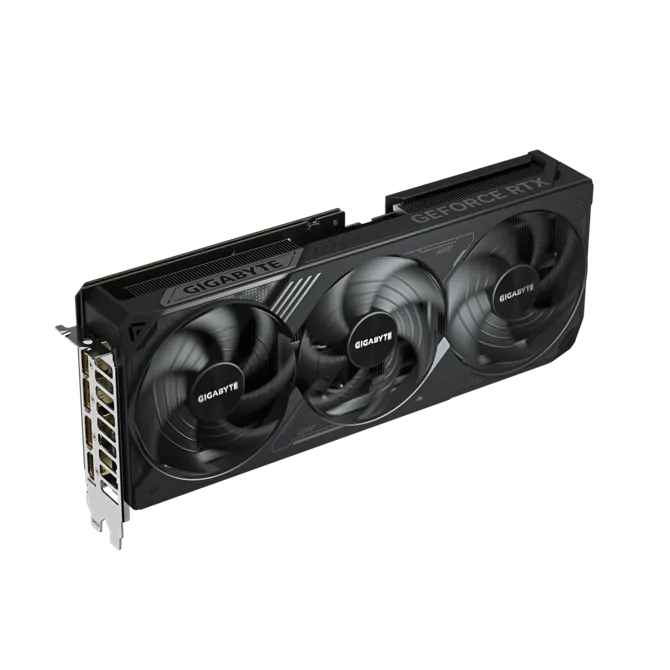

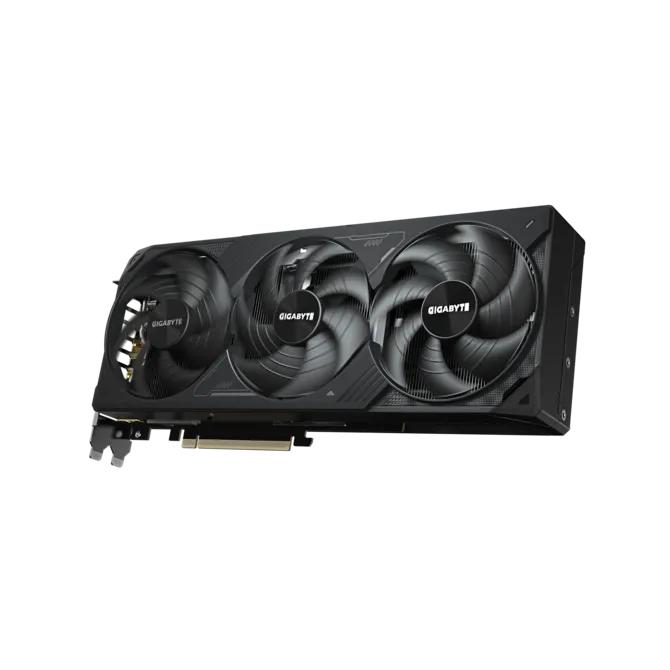

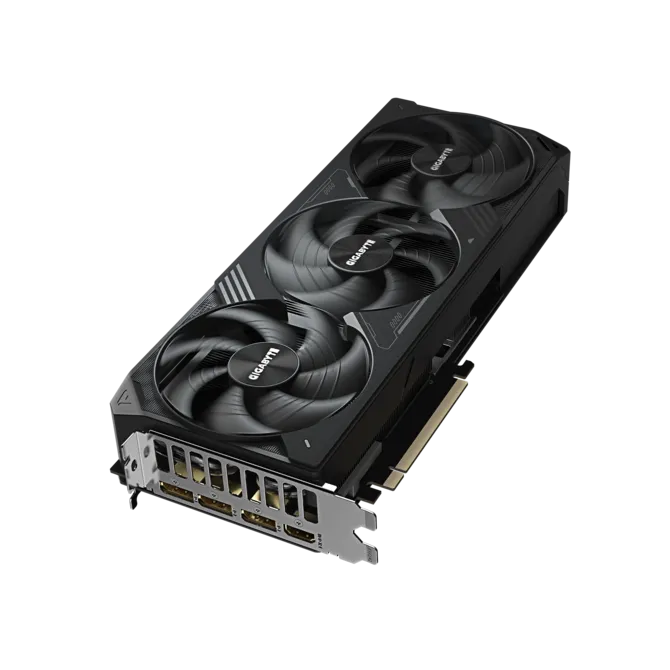

Gigabyte RTX 5070 Ti Windforce SFF 16GB GDDR7 Graphics Card

Gigabyte RTX 5070 Ti Windforce SFF 16GB GDDR7 Graphics Card

Features:

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Powered by GeForce RTX 5070 Ti
• Integrated with 16GB GDDR7 256bit memory interface
• WINDFORCE cooling system
  Hawk fan
  Server-grade thermal conductive gel
• Dual BIOS (Performance / Silent)
• NVIDIA SFF-ready
• Reinforced structure
• Versatile VGA holder
• CORE CLOCK: 2452 MHz

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of the sleeve bearing fan by 2.1 times, close to the life of a double ball bearing, and is quieter.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low-load or low-power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surfaces and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

LARGE COPPER PLATE & COMPOSITE COPPER HEAT PIPE

The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfer the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

An extended heatsink allows air to pass through, providing better heat dissipation.

DUAL BIOS (Performance / Silent)

The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will provide a quieter experience.

NVIDIA SFF-READY

Complying with NVIDIA’s small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

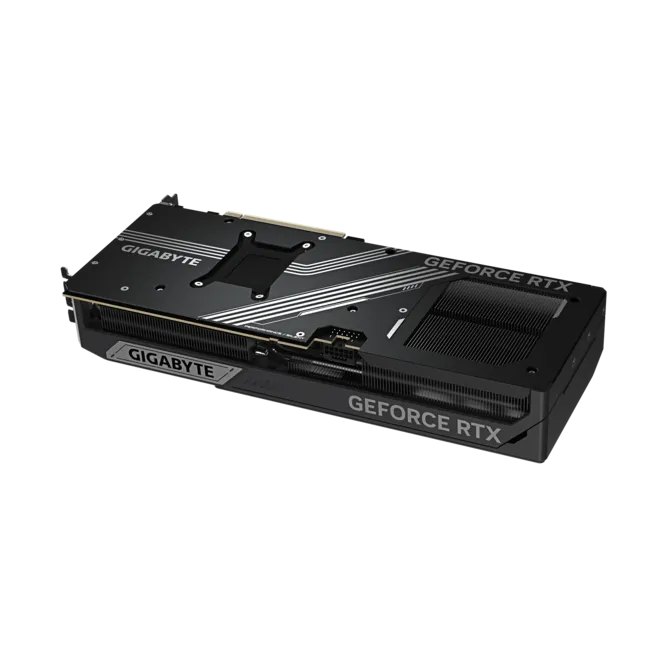

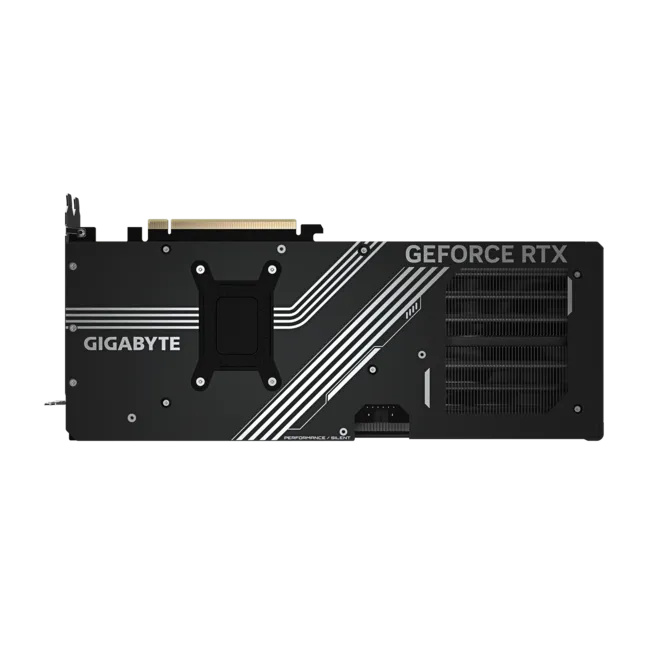

REINFORCED STRUCTURE

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

VERSATILE VGA HOLDER

Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and preventing sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.

Specification:

GRAPHICS
Model	GV-N507TWF3-16GD
Chipset	NVIDIA GEFORCE
GPU	RTX 5070 Ti
Engine Clock	2452 MHz
PCI EXPRESS	5.0
MEMORY CLOCK	28 Gbps
MEMORY SIZE	16 GB
MEMORY INTERFACE	256-BIT
MEMORY TYPE	GDDR7
OpenGL	4.6
PORTS	HDMI, DisplayPort
DirectX	12 API
RESOLUTION	7680 x 4320
COOLER	Triple Fan
Max Display Support	4
Recommended PSU	750W
GPU CORE (CUDA CORE)	8960
POWER CONNECTORS	1 x 16-pin
WARRANTY	3 Years
NOTE**	***Features, pricing, and specifications are subject to change without notice, and items may sometimes be out of stock.
