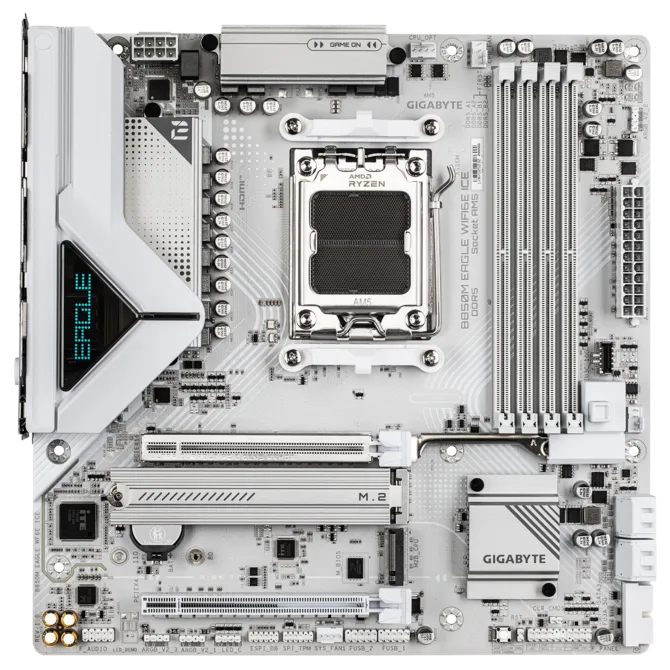

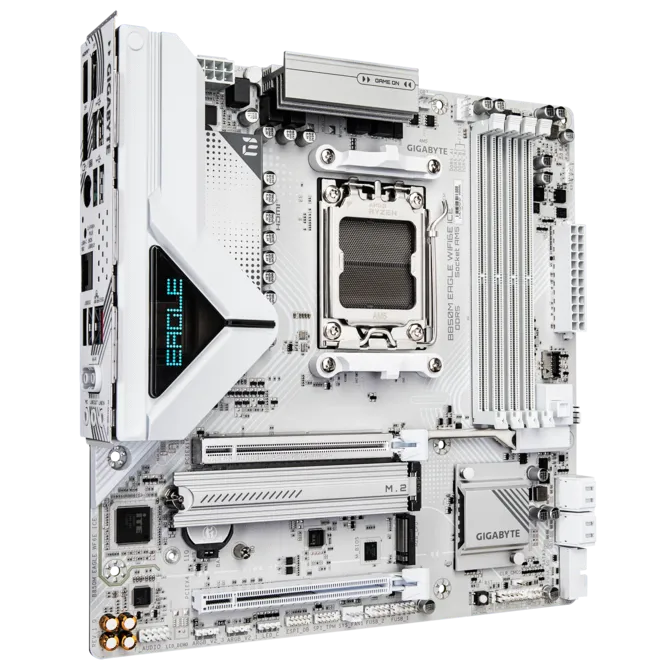

Gigabyte B850M Eagle WIFI6E Ice M-ATX Motherboard

Gigabyte B850M Eagle WIFI6E Ice M-ATX Motherboard

Features:

• X3D Turbo Mode: Unleash new era gaming performance
  DDR5 OC up to 8200MT/s
• AMD Socket AM5  Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
• Digital twin 8+2+2 phases VRM solution
• Dual Channel DDR5:4*DIMMs with AMD EXPO Memory Module Support
• WIFI EZ-Plug’s unique and easy design for Wi-Fi antenna installation
• EZ-Latch Plus  PIPiend M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click: M. heatsinks with screwless design
• Ultra-Fast Storage  2*M2 slots, including PCIe 5.0 x4
• Efficient Thermal: V RM hermal Armor Advanced & M.2 Thermal Guard
• Fast Networking: .5 GE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
• Extended Connectivity  HMI, *Displayport
• PCIe UD Slo: SM PCI 5.0 Armor for enhanced graphics card support

Specification:

Motherboard
Platform	AMD
Socket	AM5
Cpu Type	Ryzen 9000,Ryz en  8000, Ryzen 7000
Chipset	B850
Memory Speed	up to 8200
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual-channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD Extended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules. Please refer to “Memory Support List” on GIGABYTE\’s website for more information.)
Graphics Port	1 x HDMI, 2 x DisplayPorts
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Wireless Networking	Wi-Fi 6E,Bluetooth 5.3

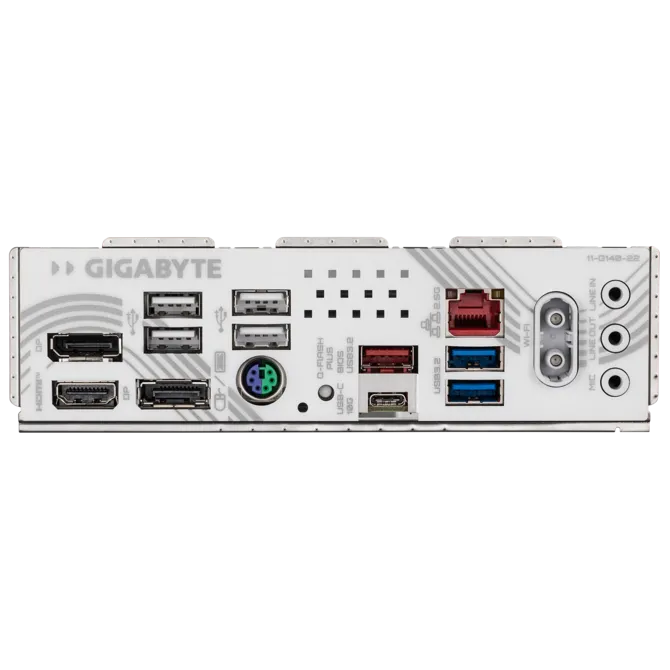

Back Panel I/O Ports	1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 2 x antenna connectors (2T2R) 3 x audio jacks (Note) Actual support may vary by CPU.
Internal I/O Connector	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Form Factor	Micro-ATX
Warranty	3 Years
Note	***Features, pricing, and specifications are subject to change without notice, and items may sometimes be out of stock.
