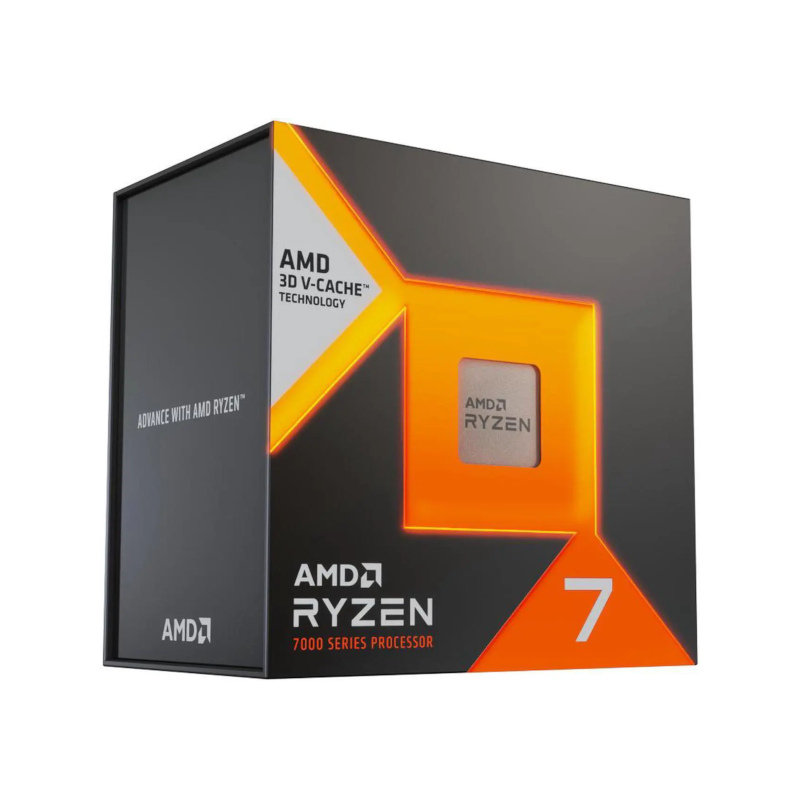

AMD Ryzen 7 7800X3D Processor with Radeon Graphics

Features:

• 8 Cores & 16 Threads, 104 MB Cache
• Base Clock: 4.2 GHz, Max Boost Clock: up to 5.6 GHz
• Memory Support: DDR5 5200MHz, Memory Channels: 2, TDP: 120W, PCI Express Generation : PCIe Gen 5
• Compatible with Motherboards based on 600 Series Chipset, Socket AM5
• On Chip Graphic Card

Specifications:

General Specifications

Platform	Desktop
Market Segment	Enthusiast Desktop
Product Family	AMD Ryzen Processors
Product Line	AMD Ryzen 7 Processors
AMD PRO Technologies	No
Consumer Use	Yes
Regional Availability	Global
Former Codename	“Raphael AM5”
Architecture	“Zen 4”
# of CPU Cores	8
Multithreading (SMT)	Yes
# of Threads	16
Max. Boost Clock	Up to 5.0GHz
Base Clock	4.2GHz
L1 Cache	512KB
L2 Cache	8MB
L3 Cache	96MB
Default TDP	120W
Processor Technology for CPU Cores	TSMC 5nm FinFET
Processor Technology for I/O Die	TSMC 6nm FinFET
CPU Compute Die (CCD) Size	71mm²
I/O Die (IOD) Size	122mm²
Package Die Count	2
AMD EXPO™ Memory Overclocking Technology	Yes
Precision Boost Overdrive	Yes
Curve Optimizer Voltage Offsets	Yes
AMD Ryzen™ Master Support	Yes
CPU Socket	AM5
Supporting Chipsets	A620 X670E X670 B650E B650
CPU Boost Technology	Precision Boost 2
Instruction Set	x86-64
Supported Extensions	AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB)	Not included
Max. Operating Temperature (Tjmax)	89°C
*OS Support	Windows 11 – 64-Bit Edition Windows 10 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer.

Connectivity

USB Type-C® Support	Yes
Native USB 3.2 Gen 2 (10Gbps) Ports	4
Native USB 3.2 Gen 1 (5Gbps) Ports	0
Native USB 2.0 (480Mbps) Ports	1
Native SATA Ports	0
PCI Express® Version	PCIe® 5.0
Native PCIe® Lanes (Total/Usable)	28/24

Additional Usable PCIe Lanes from Motherboard AMD X670E12x Gen4 AMD X67012x Gen4 AMD B650E8x Gen4 AMD B6508x Gen4

NVMe Support	Boot, RAID0, RAID1, RAID10
System Memory Type	DDR5
Memory Channels	2
Max. Memory	128GB
System Memory Subtype	UDIMM
Max Memory Speed	2x1RDDR5-5200 2x2RDDR5-5200 4x1RDDR5-3600 4x2RDDR5-3600
ECC Support	Yes (Requires mobo support)

Graphics Capabilities

Integrated Graphics	Yes
Graphics Model	AMD Radeon Graphics
Graphics Core Count	2
Graphics Frequency	2200 MHz
USB Type-C® DisplayPort™ Alternate Mode	Yes

Key Features

Supported Technologies	AMD EXPO Technology AMD Ryzen Technologies
Warranty	3 Years
