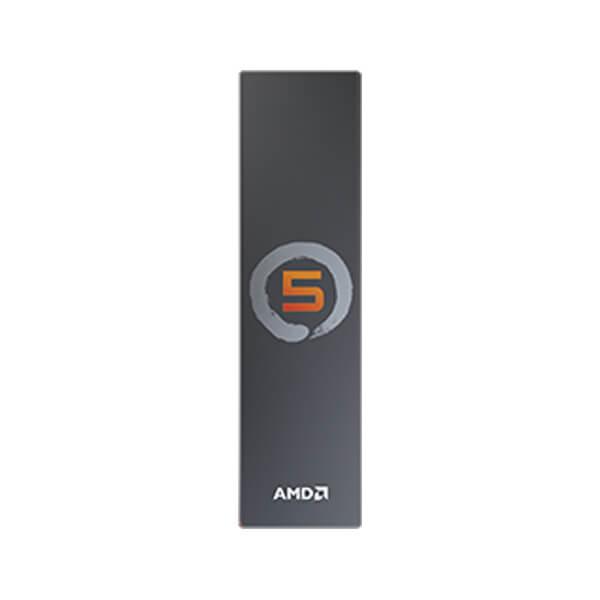

AMD Ryzen 5 7600X Processor with Radeon Graphics

Features

Ryzen 5 7600X – desktop processor produced by AMD for the socket AM5 that has 6 cores and 12 threads. The base clock frequency of the CPU is 4700 MHz, but due to Turbo Core technology, it can perform up to 5300 MHz. The size of the L3 cache is 32 MB. Please note that this chip has integrated graphics, AMD Radeon Graphics.

Specification

Platform	Desktop
Market Segment	Enthusiast Desktop
Product Family	AMD Ryzen Processors
Product Line	AMD Ryzen 5 Desktop Processors
AMD PRO Technologies	No
Consumer Use	Yes
Regional Availability	Global
Former Codename	“Raphael AM5”
Architecture	“Zen 4”
# of CPU Cores	6
Multithreading (SMT)	Yes
# of Threads	12
Max. Boost Clock	Up to 5.3GHz
Base Clock	4.7GHz
L1 Cache	384KB
L2 Cache	6MB
L3 Cache	32MB
Default TDP	105W
Processor Technology for CPU Cores	TSMC 5nm FinFET
Processor Technology for I/O Die	TSMC 6nm FinFET
CPU Compute Die (CCD) Size	71mm²
I/O Die (IOD) Size	122mm²
Package Die Count	2
Unlocked for Overclocking	Yes
AMD EXPO™ Memory Overclocking Technology	Yes
Precision Boost Overdrive	Yes
Curve Optimizer Voltage Offsets	Yes
AMD Ryzen™ Master Support	Yes
CPU Socket	AM5
Supporting Chipsets	X670E X670 B650E B650
CPU Boost Technology	Precision Boost 2
Instruction Set	x86-64
Supported Extensions	AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB)	Not included
Max. Operating Temperature (Tjmax)	95°C
OS Support	Windows 11 – 64-Bit Edition Windows 10 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer.

Connectivity

USB Type-C® Support	Yes
Native USB 3.2 Gen 2 (10Gbps) Ports	4
Native USB 3.2 Gen 1 (5Gbps) Ports	0
Native USB 2.0 (480Mbps) Ports	1
Native SATA Ports	0
Native PCIe® Lanes (Total/Usable)	28/24

Additional Usable PCIe Lanes from Motherboard AMD X670E 12x Gen4 AMD X670 12x Gen4 AMD B650E 8x Gen4 AMD B650 8x Gen4

NVMe Support	Boot, RAID0, RAID1, RAID10
Memory Channels	2
Max. Memory	128GB
System Memory Subtype	UDIMM
Max Memory Speed	1x1R 5200 MT/s
ECC Support	Yes (Requires mobo support)

Graphics Capabilities

Integrated Graphics	Yes
Graphics Model	AMD Radeon Graphics
Graphics Core Count	2
Graphics Frequency	2200 MHz
GPU Base	400 MHz
USB Type-C® DisplayPort™ Alternate Mode	Yes

Product IDs

Product ID Boxed 100-100000593WOF

Key Features

Supported Technologies	AMD EXPO Technology AMD Ryzen Technologies
Warranty	3 Years
