Specifications
| WIRELESS | |
| Standards | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC1200 5 GHz: 867 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 3 Bedroom Houses
4× Fixed High-Performance Antennas Beamforming |
| WiFi Capacity | Medium
Dual-Band MU-MIMO Airtime Fairness |
| Working Modes | Router Mode Access Point Mode |
| HARDWARE | |
| Processor | Dual-Core CPU |

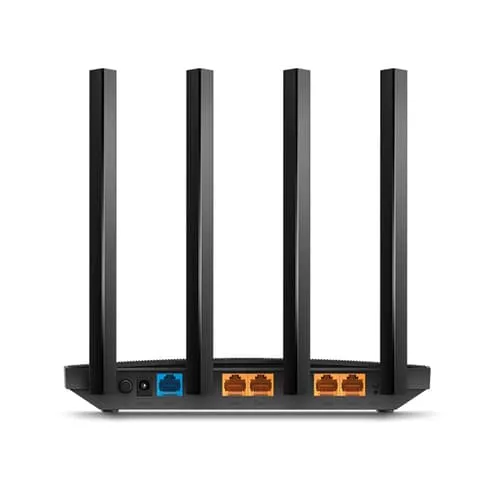

| Ethernet Ports | 1× Gigabit WAN Port 4× Gigabit LAN Ports |
| Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | 12 V ⎓ 1 A |
| SECURITY | |
| WiFi Encryption | WPA WPA2 WPA3 WPA/WPA2-Enterprise (802.1x) |
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN PPTP |
| SOFTWARE | |
| Protocols | IPv4 IPv6 |
| OneMeshâ„¢ | OneMeshâ„¢ Supported Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMeshâ„¢ helps you create a more flexible network that covers your entire home with TP-Link OneMeshâ„¢ products. |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Virtual Servers Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link NO-IP DynDNS |
| Management | Tether App Webpage |
| PHYSICAL | |
| Dimensions (W×D×H) | 8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm) |
| Package Contents | Wi-Fi Router Archer C6 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| OTHER | |
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
| WiFi Transmission Power | CE EIRP: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm(2.4GHz & 5GHz) |
| WiFi Reception Sensitivity | 5GHz: 11a 6Mbps:-93dBmï¼›11a 54Mbps:-78dBmï¼› 11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-50dBm; 11ac HT80 mcs9:-62dBm; 2.4GHz: 11g 54Mbps:-78dBm; 11n HT20 mcs7:-74dBm; 11n HT40 mcs7:-71dbmï¼› |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Router | |
| Network Standard | 802.11ac, IPv4, IPv6 |
| Ethernet Standard | Gigabit Ethernet |
| Antenna Type | External Antenna |
| Wi-Fi Speed | AC1200 |
| Coverage | Medium Homes |
| Category | Wi-Fi Router |
| OS Support | Windows 7,Windows 8, WIndows 10, Mac OS |
| Wi-Fi Band | Dual-Band |
| WAN Type | SINGLE WAN |
| Router Type | RJ45 CABLE |
