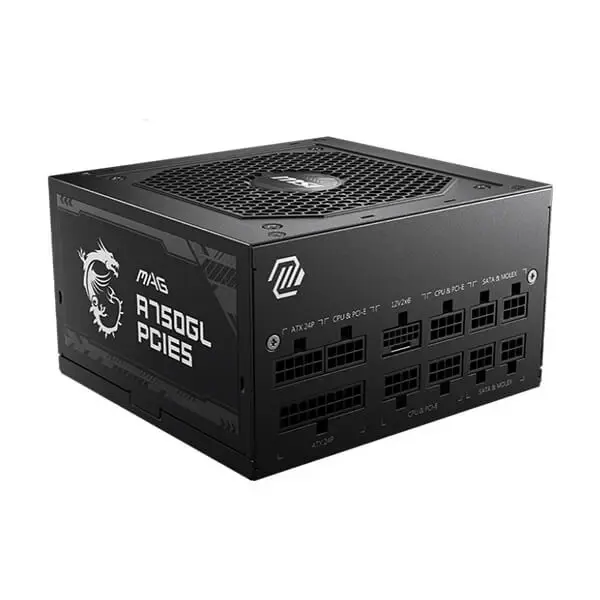

MSI MAG A750GL PCIE5 ATX 3.1 Fully Modular SMPS

MSI MAG A750GL PCIe 5 ATX 3.1 Fully Modular SMPS

Features

MAG A750GL PCIE5

• ATX 3.1 compatible, native PCIe 5.1 connector,r dual-color 16-pin cable
• Supports NVIDIA GeForce RTX 40 Series graphics cards
• Full modular design, Flat cables
• 80 Plus Gold certified for high efficiency
• Active PFC design, Industrial level protection with OV, OC P OP P,O T P, SCP,UVP
• 120mm Fluid Dynamic Bearing Fan
• LLC Full Bridge Topology with DC-DC module design

The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

ATX 3.1 Ready

It has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide). Also,.1, also the MAPCIe 50GL PCIE5 power supply can hold up to 2x total power excursion and 3x GPU power excursion.

ENERGY EFFICIENCY CERTIFICATION

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

COMPACT SIZING

Smaller than typical PSUs on the market, this power suunit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.

ONLY WHAT YOU NEED

The connectors required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

ALL THE MORE ORGANIZED

Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of a headache! Thanks to the flat cables, the entire system can be more organized and have more room for unobstructed airflow.

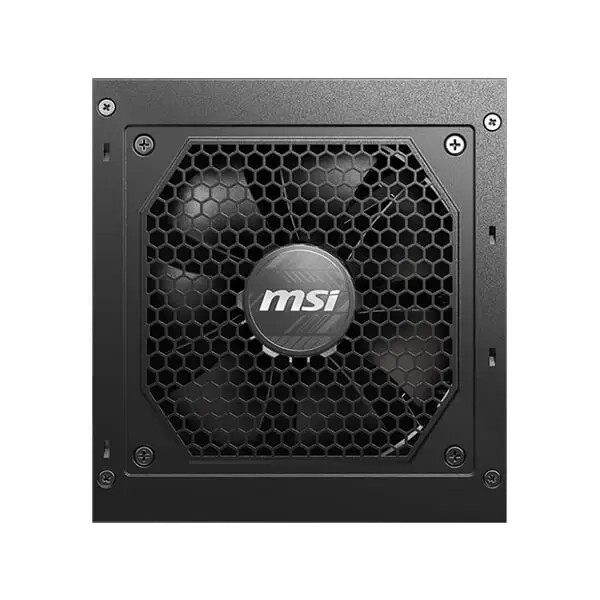

FLUID DYNAMIC BEARING

The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.

DC to DC & Full bridgeDC-to-DCC and Full bridge can be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

THE POWER YOU HAVE

The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply’s CPU & PCIe connectors are more than sufficient.

PROTECTION MECHANISMS

To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.

Specification

Psu

Wattage	750 Watt
Series	MAG SERIES
Certification	80 Plus Gold
Modular	FULLY MODULAR
PCIe Connector (6+2)	3
SATA Connector	8
Peripheral (4-Pin)	4
Warranty	7 Years
