|Case Type||FULL Tower|
|MB Support||EATX、ATX Micro-ATX\、Mini -ITX|
|Synchronization||5V 3-Pin Addressable Header|
|Expansion Slots||8 to 8|
|Material||SPCC & ABS & Tempered glass|
|Radiator Support||Top: 360mm、280mm / Side: 360mm、420mm / Rear: 120mm|
|Fan Support||Top: 3 x 120mm、2 x 140mm / Side: 3 x 120mm、 3 x 140mm / Rear: 1 x 120mm / Bottom: 3 x 120mm|
|Drive Bays||2 x 3.5″ or 1 x 2.5″+1 x 3.5″(HDD Cage)|
2 x 2.5″(HDD Cage) + 3 x 2.5” (SSD Bracket)
|I/O Port||USB 3.0 x2, Type C x 1, HD Audio x1, LED Control x1|
|Clearance||CPU cooler height limitation:193mm|
VGA length limitation:426mm
VGA width limitation: 192mm
PSU length limitation:180mm
|Dimension (L x W x H)||490 x 310 x 495 mm|
|Net Weight||11.97 kg / 26.38 lb|
|Note||* Features, Prices, and Specifications are subject to change without notice.|

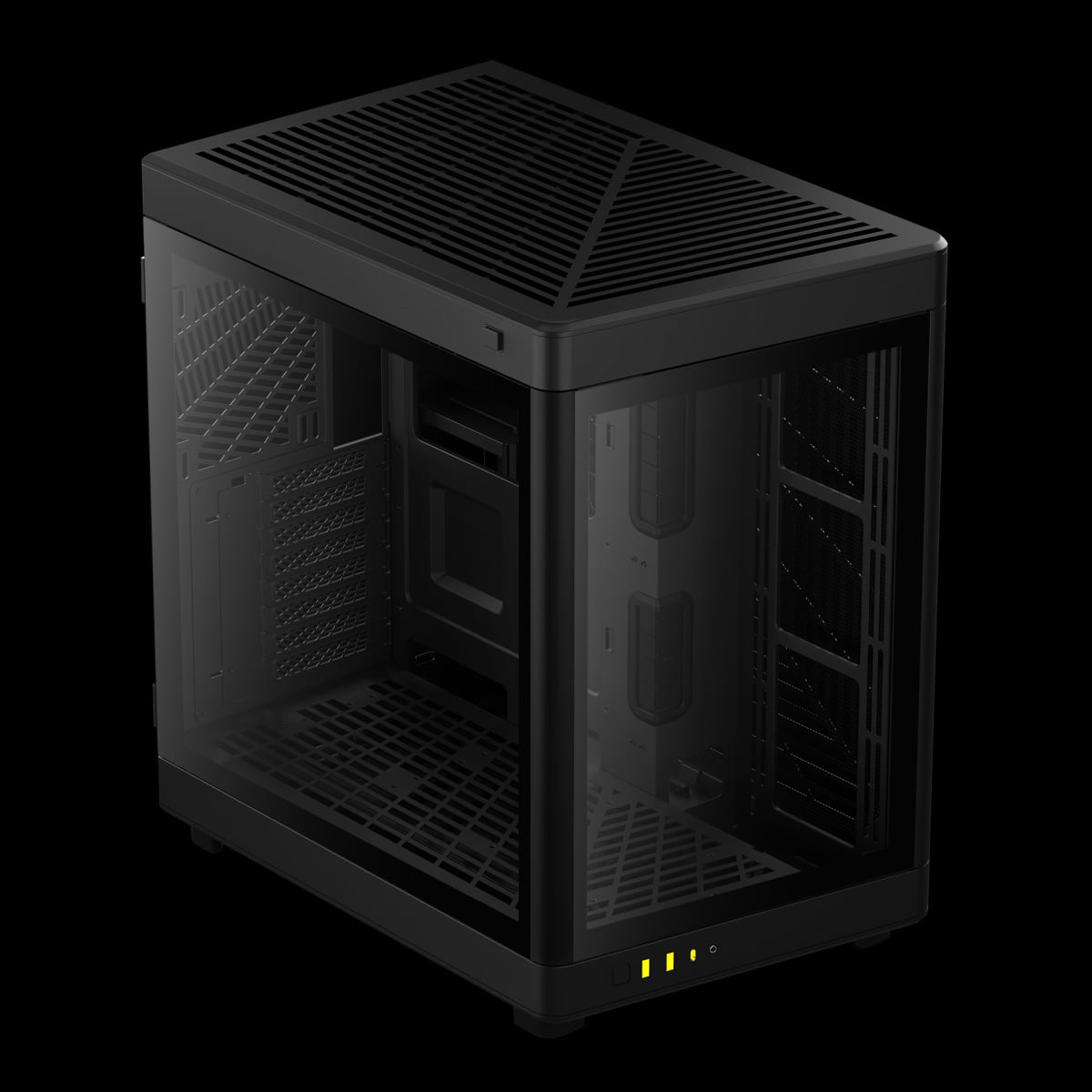

PRIME LIFESTYLE CASE
The NESO P1 full-tower case features a dual-chamber design and a distinctive trapezoidal form that allows you to showcase your hardware in either horizontal or vertical orientation. Improve your building experience by using the one-touch mechanism to easily remove the glass and gain access to the inside for upgrades and maintenance. The high-end chassis provides robust functionalities and features for enthusiasts, gamers, and professionals who require high-end performance, better build quality, and improved aesthetics.
The NESO P1 comes out as a lifestyle case with its distinctive trapezoidal appearance and a sleek grid design from the inside out.
The case utilizes modular pedestals to rotate the case from vertical to horizontal seamlessly while leveraging solid airflow and stability. A new case orientation provides a fresher look and unlocks an entirely new building experience.
FULL PANORAMIC DISPLAY
The NESO P1 is an open dual-chamber E-ATX case that properly displays all of your hardware thanks to its unique trapezoidal form factor while concealing unsightly cables and components.
ONE-TOUCH RELEASE MECHANISM
Access your hardware with ease with a simple touch of a button. The dual-hinged tempered glass side panels are detachable for an improved modding experience.
NEXT-LEVEL AIRFLOW DESIGN
Through fully perforated mesh panels around the case, the NESO P1 provides optimum airflow routes and endless options to configure airflow intake and exhaust while utilizing the modular case orientation.
ROTATABLE PCIe SLOTS
NESO P1 features 8×8 rotatable PCIe slots and interior space of up to 426mm allowing flexible installation of horizontal and vertical GPUs of up to RTX 40-series.
EXCELLENT CABLE MANAGEMENT
The case’s hidden compartment is 90mm deep, allowing for ample cable management as well as a well-designed cable routing system with included velcro straps for a superb building experience.
MODERN FRONT PANEL I/O
The concise I/O features a USB 3.2 Gen 2 Type-C port, two USB 3.0 ports, and an integrated audio jack.
EXTENSIVE COOLING CAPABILITY
The side of the case is compatible with up to 420mm radiators and features an increased depth of 80mm for extra thick radiators and next-generation configurations.
The case is equipped with a detachable top cooling bracket for easy installation of top-side radiators up to 280/360mm in length.
NESO P1 is able to house up to 10 fans, providing a wider range of build customizability for professionals and enthusiasts.
EXTENSIVE STORAGE COMPATIBILITY
The hidden compartment is able to accommodate PSU with lengths up to 180mm. It also comes with an additional SSD bracket and allows the case to install up to 5 x 2.5″ SSD, or up to 2 x 3.5″ HDD.
