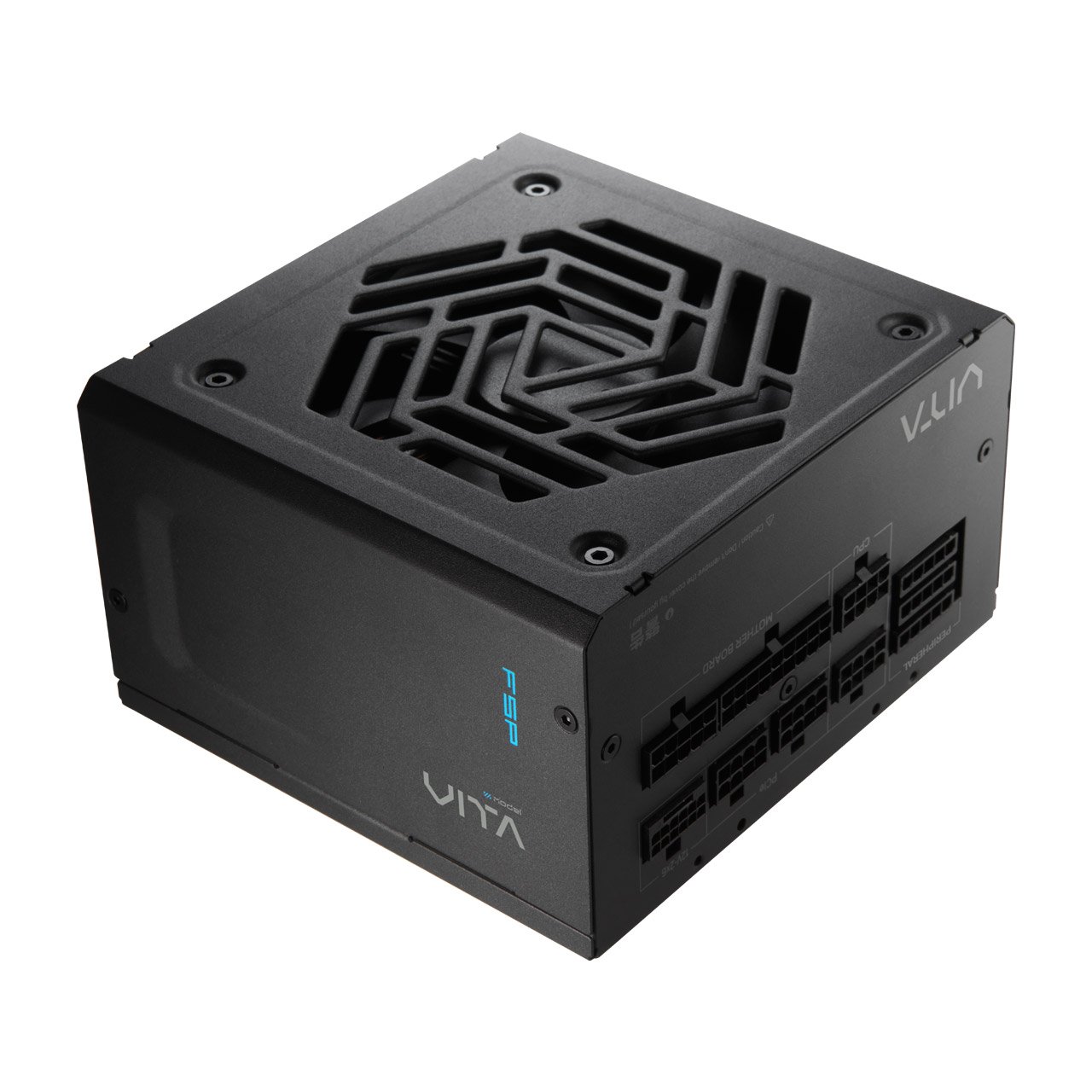

FSP VITA GM Gold 1000 Watt ATX 3.1 Fully Modular SMPS

Features

• Complies with ATX 12V V3.1 & EPS 12V V2.92
• Efficiency ≧ 90% at typical load
• 80 PLUS Gold certified
• 105°C Japanese bulk capacitor
• 120mm hydraulic bearing ( HYB ) fan
• Fully modular cabling design
• Complete protections: OCP, OVP, SCP, OPP, UVP, OTP, SIP, NLO

Complies with Intel Power Design Guide ATX 3.1

Built for the demanding power requirements of tomorrow, these PSUs offer maximum total power excursion support as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring peak performance with future hardware upgrades.

High Efficiency in Gold-certified

Certified by world-class organizations with 80 PLUS Gold certification and reaching platinum efficiency at typical load for lower power loss, less heat, and quieter operation.

LLC Resonant-converter Topology with Synchronous Rectifier

Reducing switching losses, boosting efficiency, and keeping the output voltage regulated under load conditions.

+5V & 3.3V DC-to-DC Circuit Design

Increase the efficiency and stabilize the output voltage to ensure system stability.

105°C Japanese Bulk Capacitor

Equip your PC with the best-in-class capacitors to offer maximum reliability, performance, and lasting power.

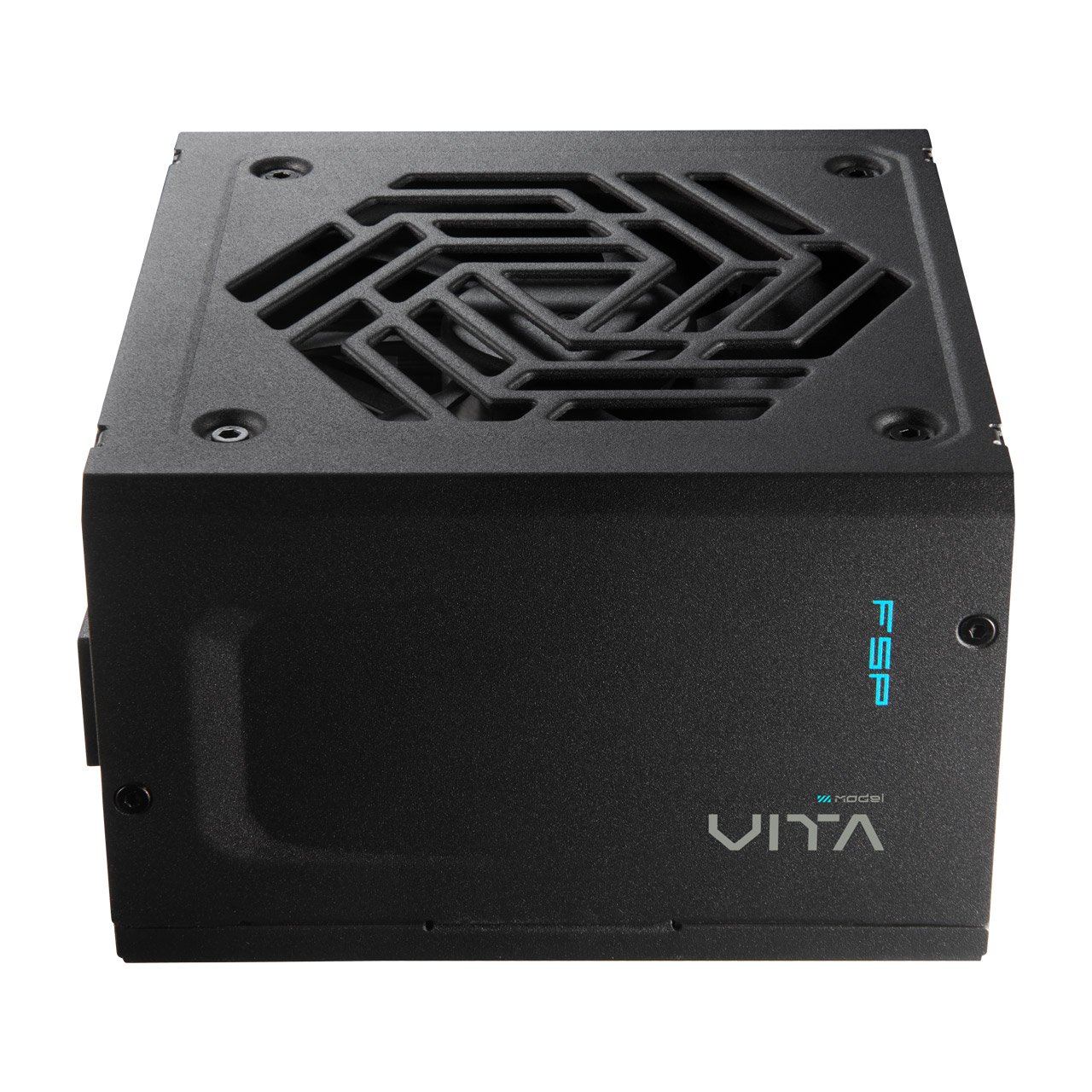

120 mm hydraulic bearing (HYB) fan

Quality bearing keeps fan noise to a minimum while providing maximum cooling performance.

Powerhouse Single +12V Rail

This high-amperage +12V rail delivers high load capabilities; it’s ideal for intensive workloads of high-performance CPUs and graphics cards.

The Force Comes with You

Individual CPU 4+4 pin cables provide CPU direct output power to ensure stable operation even under the most demanding workloads.

The Force Comes with You

Dual PCIe 6+2-pin cables and a versatile 12V-2×6 cable offer flexible configuration for even the most power-hungry NVIDIA or AMD graphics cards.

Fully Modular Cabling Design

To make power supply installation easy and allow users to use only the needed cables, improving airflow and reducing system clutter.

Compact PSU Size：140 x 150 x 86mm

140mm in length, which is relatively shorter than the industry standard; it’s ideal for compact PC or space-constraint environment without compromising on performance.

Fortress-level Protection

Our comprehensive circuit shields your valuable components from harm.

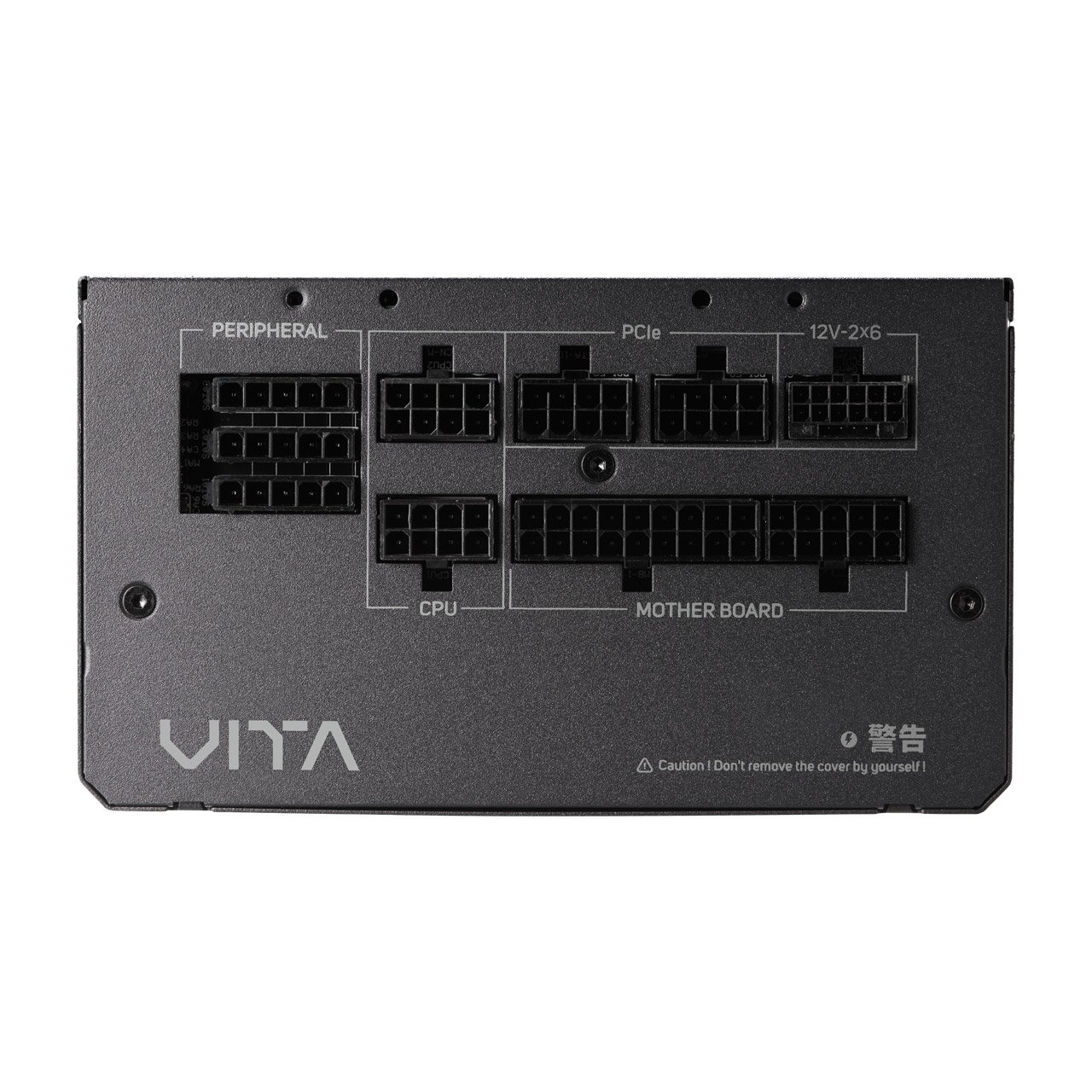

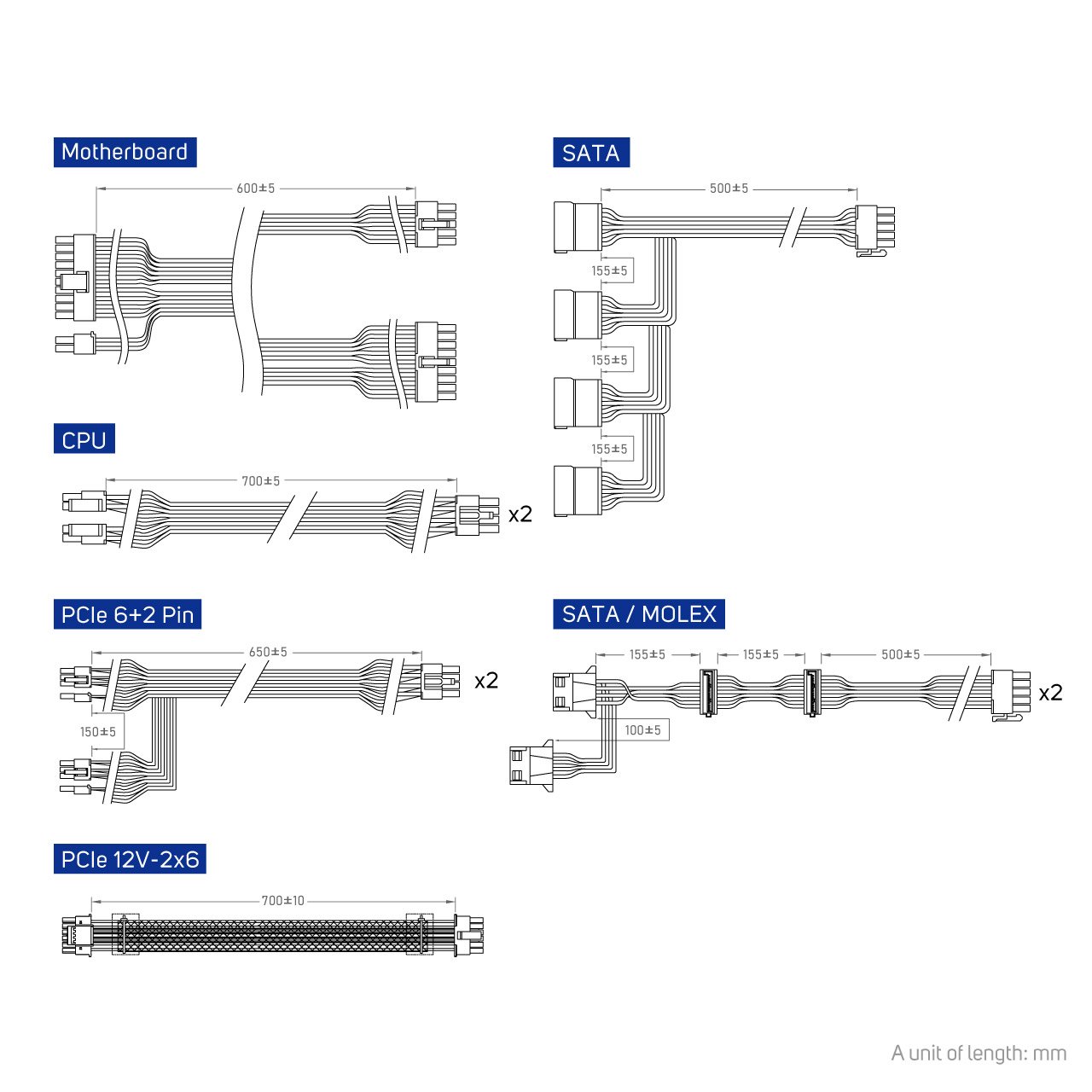

Coonector

MB 20+4 PIN	1
CPU 4+4 PIN	2
PCIe 6+2 PIN	4
PCIe 12V-2×6	1
SATA	4
SATA / MOLEX	4

Specifications

Rated Output Power	1000W
Form Factor	ATX12V V3.1
80 PLUS Certification	Gold
Input Voltage	100-240V
Input Current	12-6A
Input Frequency	50-60Hz
PFC	Active ≧ 0.9
Efficiency	≥90% at typical load
Fan Type	HYB fan, 120mm
Dimensions(L x W x H)	140×150×86 mm
Operating Temp	40°C
Protection	OCP, OVP, SCP, OPP, UVP, OTP, SIP, NLO

Specification

Psu

Wattage	1000 Watt
Series	VITA SERIES
Certification	80 Plus Gold
Modular	FULLY MODULAR
PCIe Connector (6+2)	4
SATA Connector	4
Peripheral (4-Pin)	4
Warranty	10 Years
