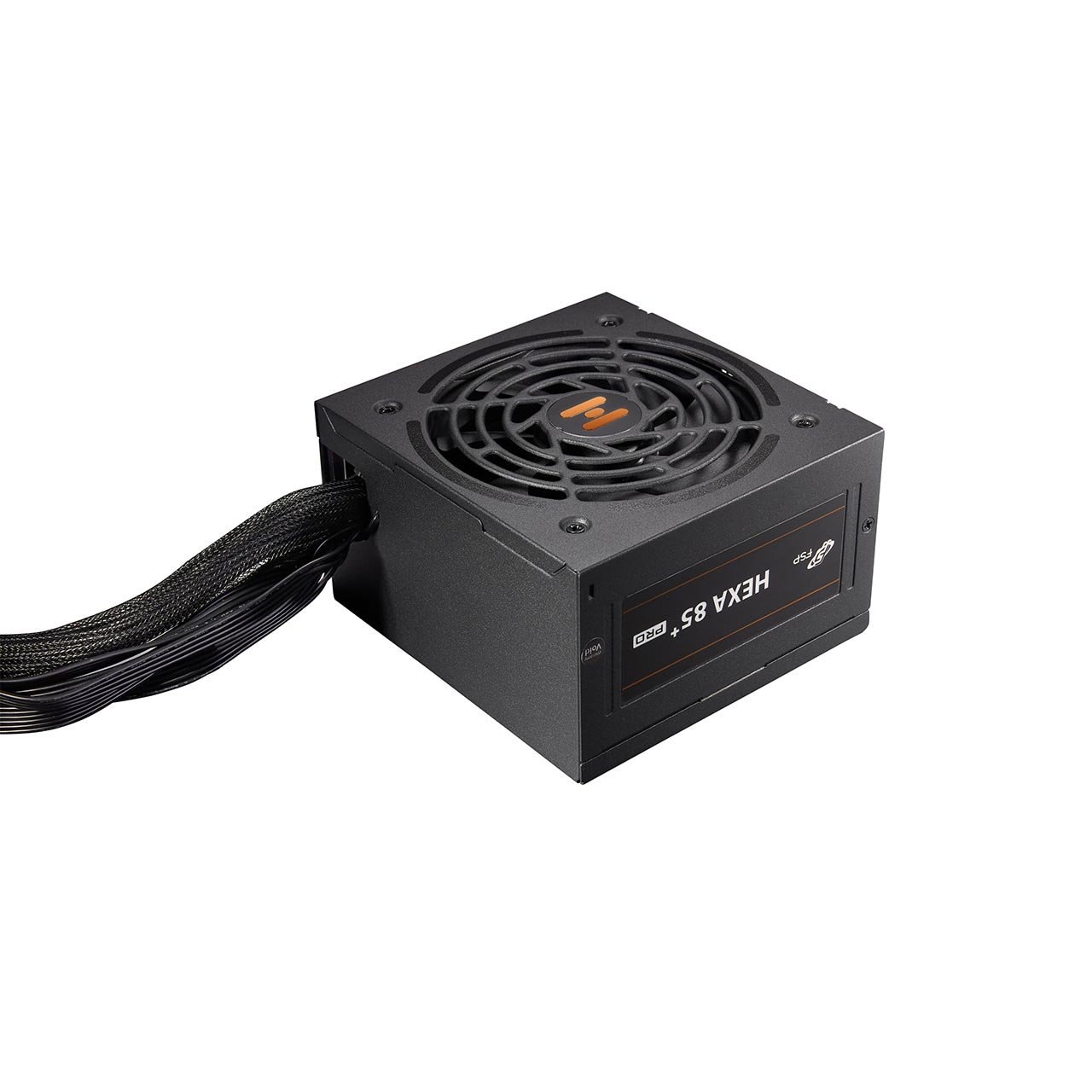

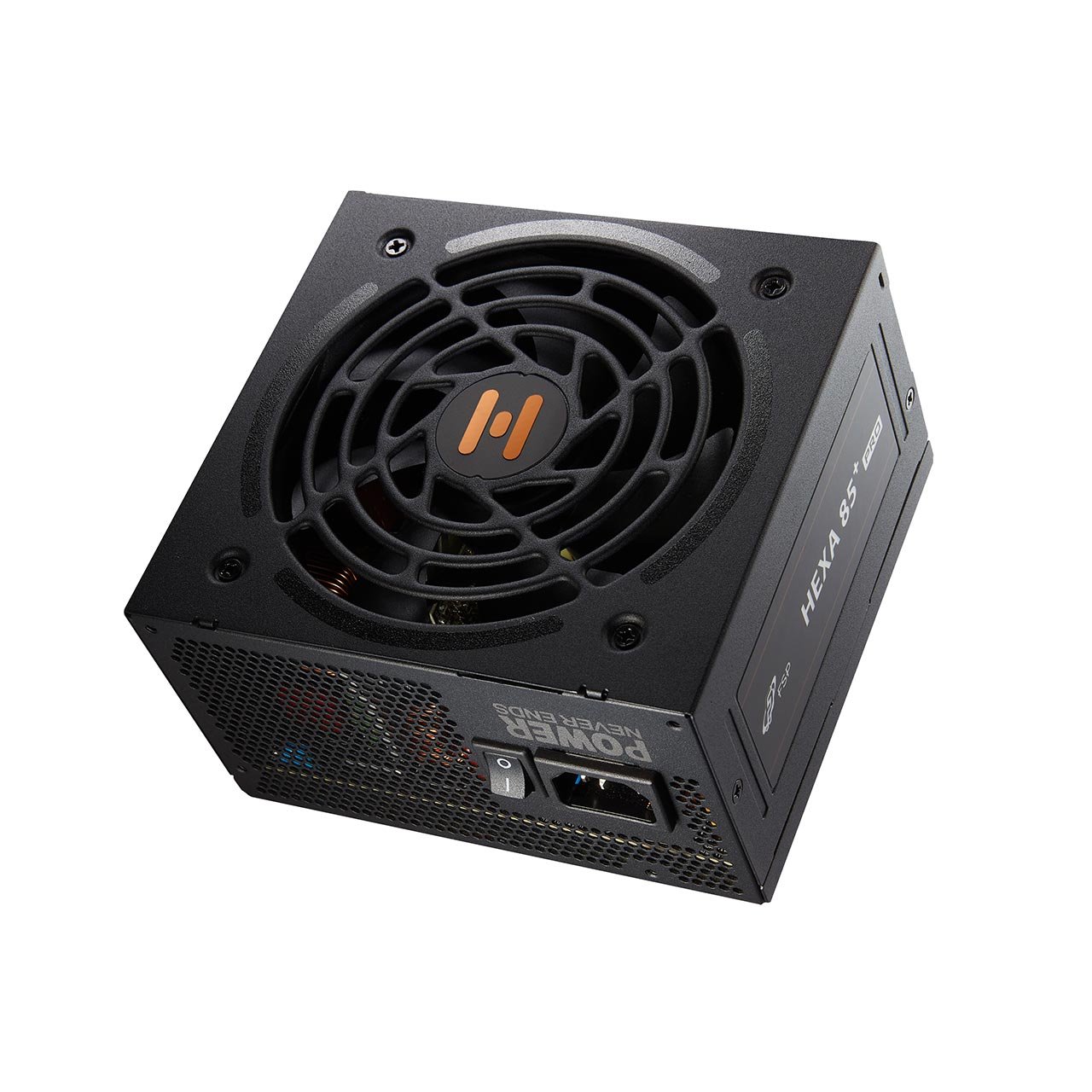

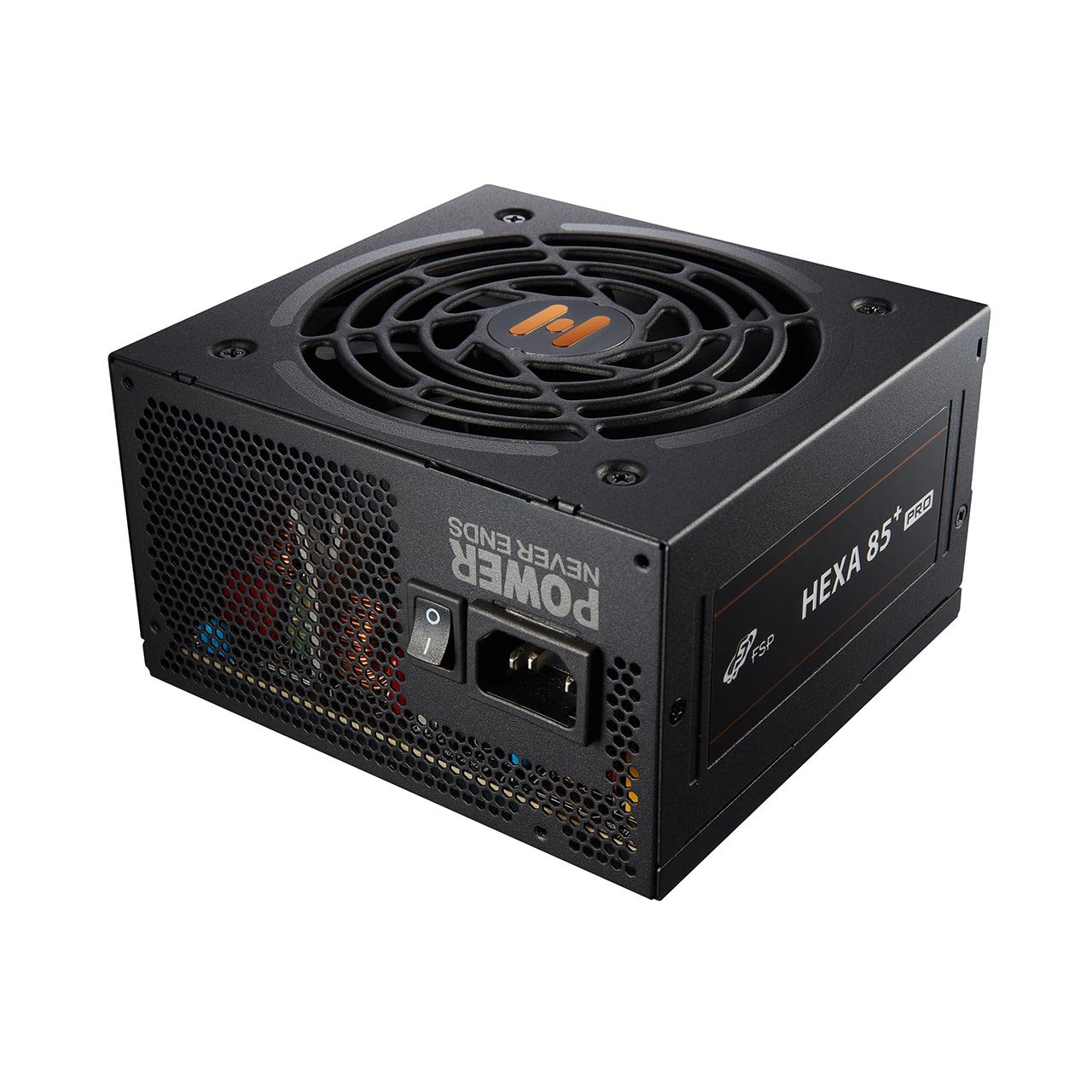

FSP Hexa 85 Plus Pro Bronze 750 Watt ATX 3.1 SMPS

Features

• Complies with ATX12V V3.1 & EPS12V V2.92
• Support native PCIe 12V-2×6 connector(850W & 750W)
• Efficiency ≧ 85% at typical load
• Active PFC ≧ 0.9
• Hold up time > 17ms at 80% load
• Japanese electrolytic capacitors
• +12V single-rail design
• +5V & 3.3V DC-to-DC module design
• 120mm hydraulic bearing (HYB) fan
• Flat black ribbon cables
• Complete protection: OCP/OVP/OPP/SCP

New ATX PSU Specifications

Updated ATX 3.1 specifications for the next-generation hardware power demands, ensuring users get the most stable and cost-optimized performance possible with the highest power efficiency.

80 Plus Bronze Certification

HEXA 85+ PRO Series, 80 PLUS Bronze certified, saves energy through its high efficiency up to 85%.

All Black Flat Cables

It gives your system a superior look than ever and is more straightforward than many entry-level power supplies.

Stable DC to DC Output Quality

HEXA 85+ PRO series applies DC-to-DC modules to improve reliability and compatibility, with low ripple noise to reduce interference with system components and prolong system lifetime.

+12V Single Rail Design

Designed for power-intensive VGA cards, provides strong power under overloading conditions

Optimal Cooling

HEXA 85+ PRO series comes with a 120mm quiet hydraulic bearing (HYB) fan and a highly efficient ventilation fan guard to guarantee low-noise operation without compromising its cooling efficiency.

Japanese Electrolytic Capacitors

Japanese electrolytic capacitors ensure safety and superior parts for prolonged lifespan and reliability.

Supports High-end Motherboard

For gaming enthusiasts, the HEXA 85+ PRO 750W features dual CPU power connectors for high-end motherboards and stable CPU power delivery.

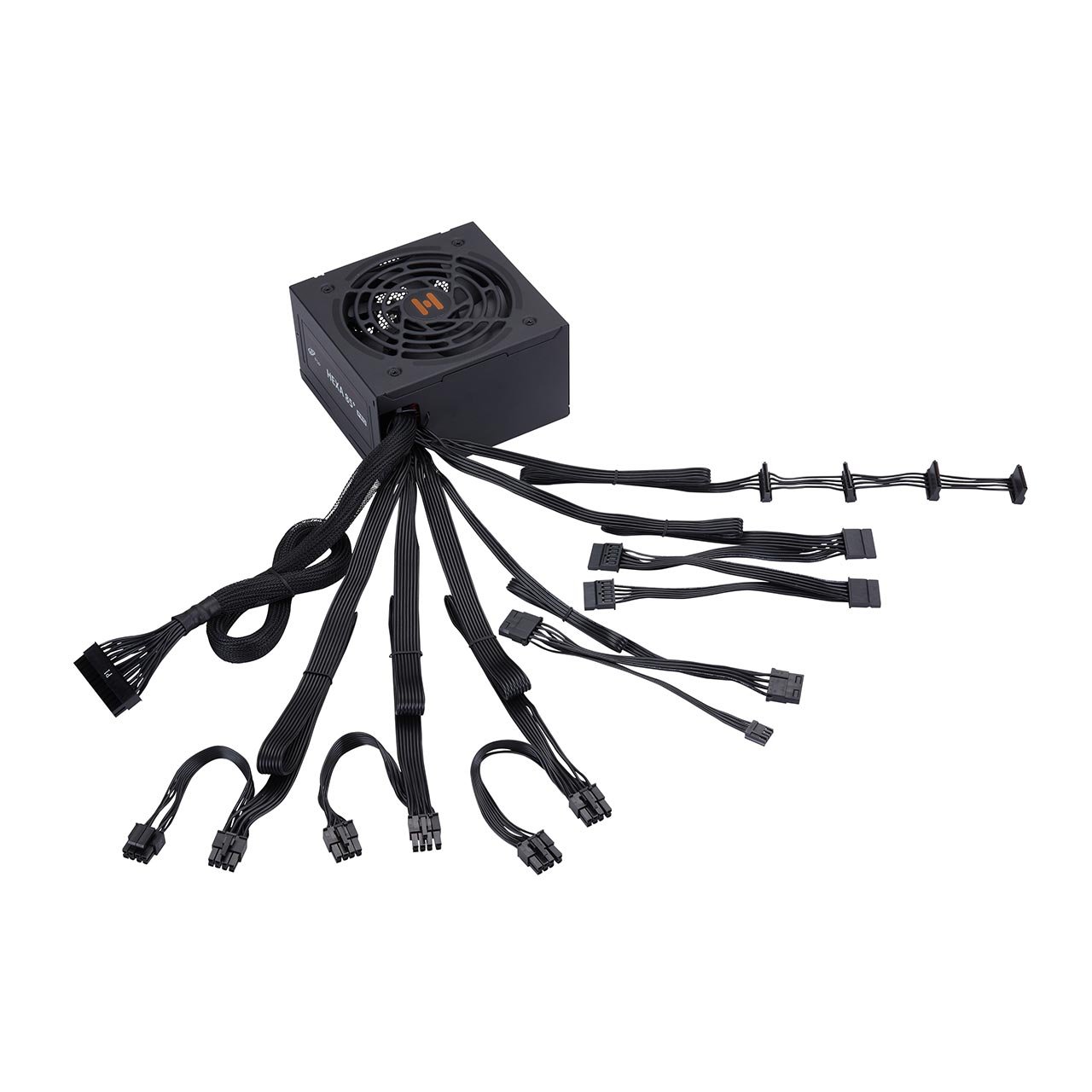

Connectors

MB 24 PIN	1
CPU 4+4 PIN	2
PCIe 12V-2×6	1
PCIe 6+2 PIN	2
SATA	8
Molex	2
Floppy	1

Specification

Model	HA2-750,Gen5
Rated Output Power	750W
Form Factor	ATX
80 PLUS Certification	80 PLUS Bronze
Input Voltage	100-240V
Input Current	10-5A
Input Frequency	50-60Hz
PFC	Active PFC
Efficiency	≥85% at typical load
Fan Type	Hydraulic Bearing (HYB) Fan, 120mm
Protection	OCP/OVP/OPP/SCP

Specification

Psu

Wattage	750 Watt
Series	HEXA SERIES
Certification	80 Plus Bronze
Modular	NON MODULAR
PCIe Connector (6+2)	2
SATA Connector	8
Peripheral (4-Pin)	2
Warranty	5 Years
