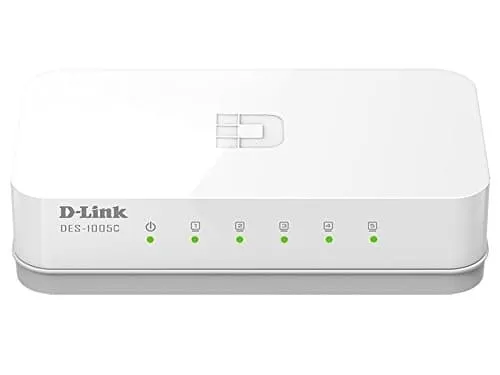

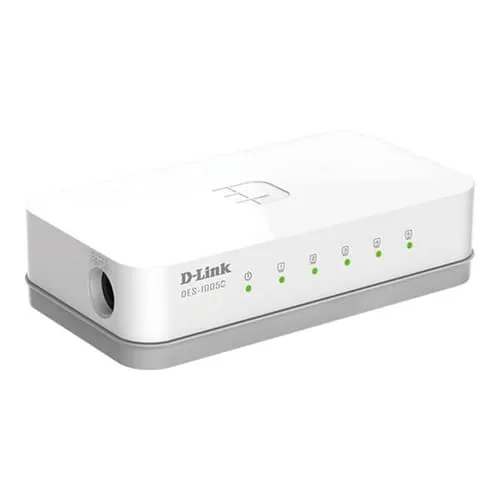

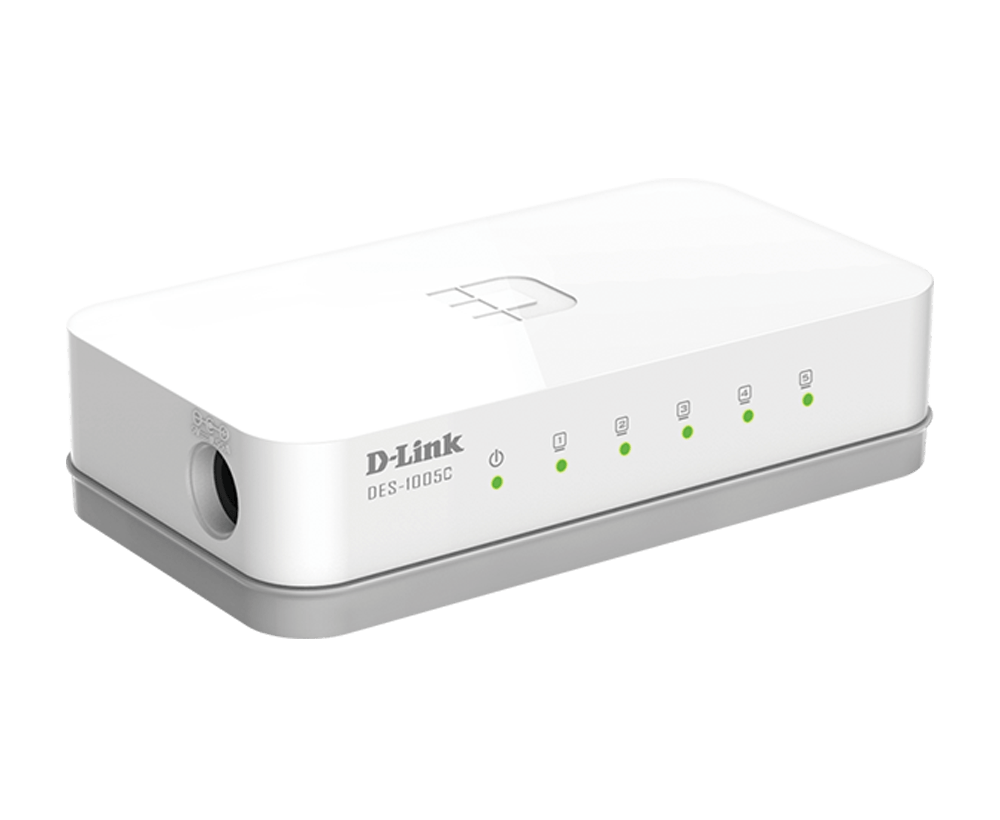

D-Link DES-1005C Desktop Switch

Features

• 5 high-speed Fast Ethernet ports
• Innovative D-Link Green energy saving features
• Compact design for convenient placement
• Fanless design for silent operation

Fast Networking Made Easy

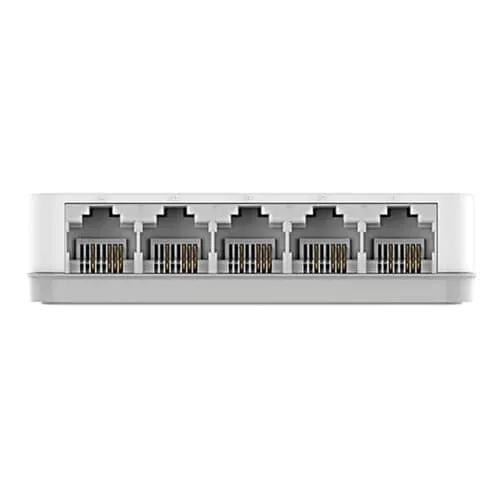

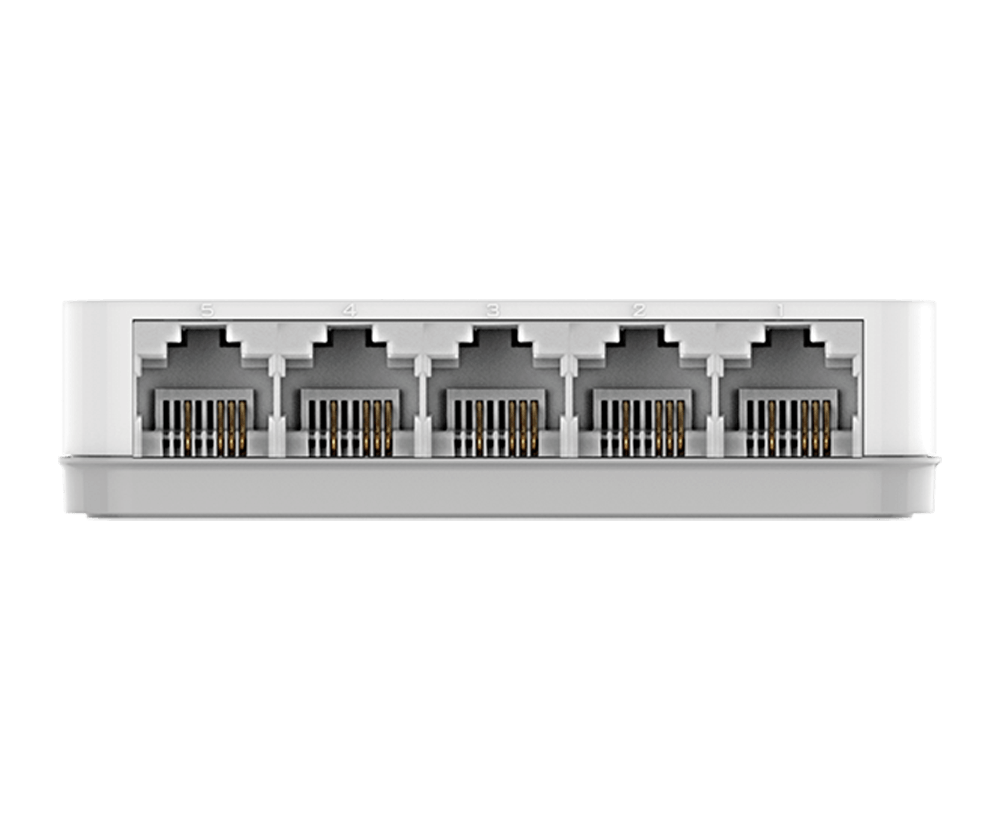

With data transfer speeds of up to 200 Mbps at full duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover makes connection a cinch; just plug in your cables and you’re ready to go.

Economical, Plug-and-play Networking Switch

The DES-1005C 10/100 Mbps Unmanaged Switch is an economical, plug-and-play networking switch for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Fast Ethernet. It gives you five 10/100 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.

Conserve Energy

The DES-1005C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switches can detect when a connected computer is shut down or when there is no Ethernet traffic, and will put the port in standby mode, saving a substantial amount of power. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.

Reliable Plug and Play Installation

The DES-1005C is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices.

Specifications

Model Number	DES-1005C
100Base-TX Interface	5
Auto MDI/MDIX	Yes
Switching Capacity	1 Gbps
Max. Packet Forwarding Rate	0.74 Mpps
Store & Forwarding Forwading	Yes
Dimension	88x48x21.45mm
Weight	0.0434 kg
Operation Temperature	0 ~ 40 °C
Storage Temperature	– 40 ~ 70 °C
Operation Humidity	10% ~ 90% RH
Storage Humidity	5% ~ 95% RH
Maximum Power Consumption	0.784 W
Standby Power Consumption	0.4 W
Maximum Heat Dissipation	0.406 BTU/h
MTBF	1,785,631 hours

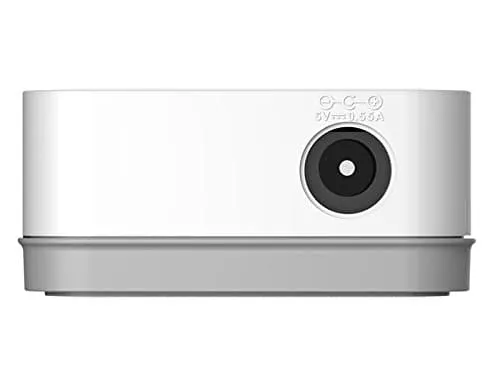

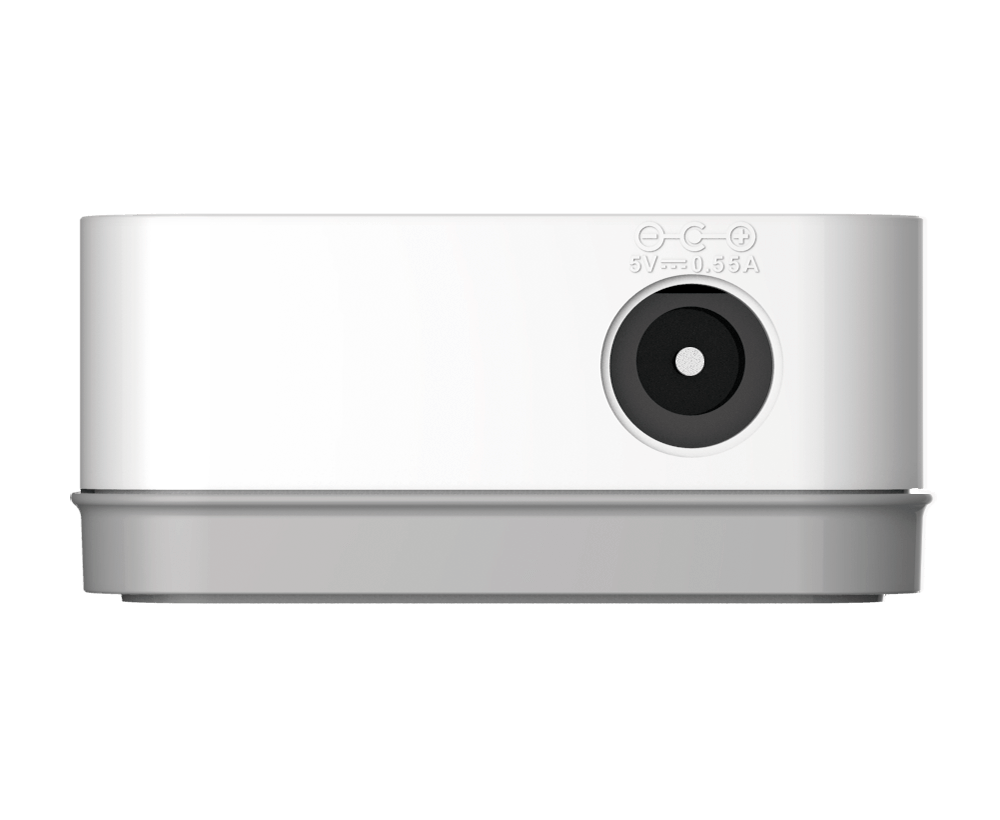

Power Input	DC : 5V, 0.55A
Packet Buffer Size	96K bytes
Fan	Fanless
Energy Efficient Ethernet (EEE)	Yes
Power Saving By Link Status	Yes
MAC Address Table Size	2,000
802.3x Flow Control	Yes
Head-of-Line (HOL) Blocking Prevention	Yes
Jumbo Frame	2048 bytes
Warranty	3 Years
