Description
Specifications:
| Model | NCORE 100 MAX |
| Color | Bronze |
| P/N | NR100-ZNNN85-SL0 |
| Materials – Exterior | Steel, Plastic, Aluminum |
| Materials – Side Panel | Aluminum |
| Dimensions (L x W x H) |
|
| Volume | 15.80L (Normal mode), 17.54L (Expansion mode) |
| Motherboard Support | ITX |
| Expansion Slots | 3x PCIe Slot mounting |
| Drive Bays – 2.5″ SSD | 1 |

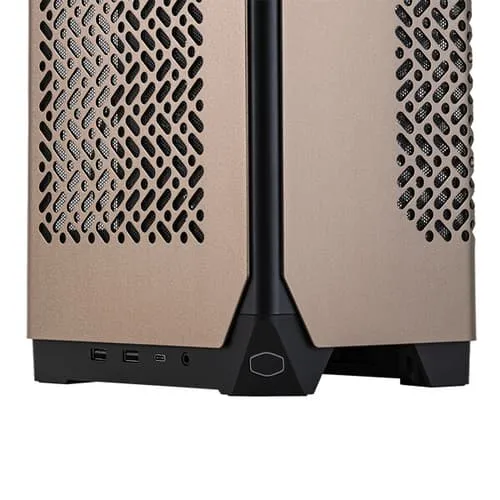

| I/O Panel | 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 x 2 Type C, 1x Audio Combo (Audio In / Out 3.5mm) |
| Included Accessories | 1x 240mm PCIe 4.0 x16 |
| Included CPU Cooling Solution | 120mm Radiator with 38mm Thickness x 1 (Custom PWM Fan Max. 2400RPM) |
| Included Power Supply Unit | V SFX Gold 850W ATX 3.0 |
| Pre-installed Fan(s) – Rear | 120mm SickleFlow PWM Fan x1 (Max. 1800RPM) |
| Clearances – CPU Cooler | 48mm |
| Clearances – Power Supply | 100mm |
| Clearances – RAM | 48mm |
| Clearances – Graphics Card | 337mm x 62mm x 180mm (Normal, 3.0 Slot thick), 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick), (Maximum space including GPU power connector) |
| Cable Routing – Behind MB Tray | 11mm |
| Dust Filters | Side panels |
| Power Supply Support | SFX |
| Warranty | 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery) |
| Note | ***Features, pricing, and specifications are subject to change without notice, and items may sometimes be out of stock. |
| Cabinet | |
| Cabinet Size | MINI-TOWER |
| Color | Bronze |
| Material | Steel, Plastic, Aluminum |
| Expansion Slots | 3 |
| Motherboard Size | M-ITX |
| Max CPU Cooler Height | 48mm |
| Max PSU Length | 100mm |
| Max Gpu Length | 337mm |
| Max 2.5″ SSD | 1 |
| Dust Filters | Side |
| Pre Installed Fans | 1 |
| Max Fan Support | 1 |
| Radiator Support | 120mm |
| Front I/O Panel | USB 3.2, USB Type C, Audio Combo |
| Warranty | 2 Years |
