- Translucent Dome
- Optimized Dual Chamber Pump
- Expanded Dissipation Surface Area
- MasterFan MF120 Halo
- MasterPlus+ Software

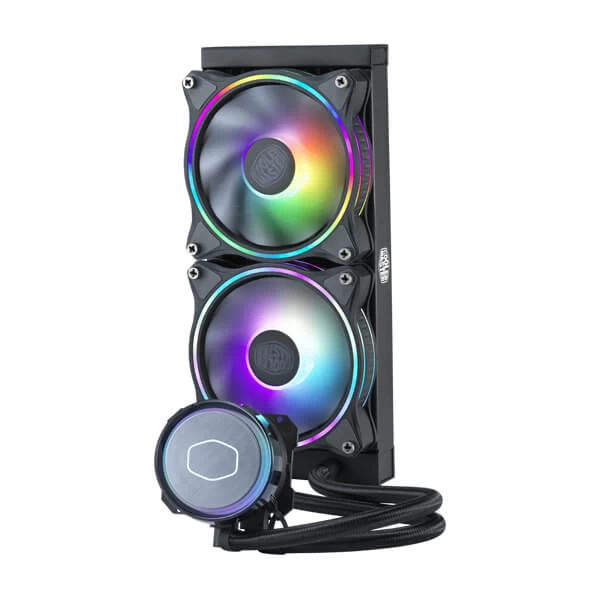

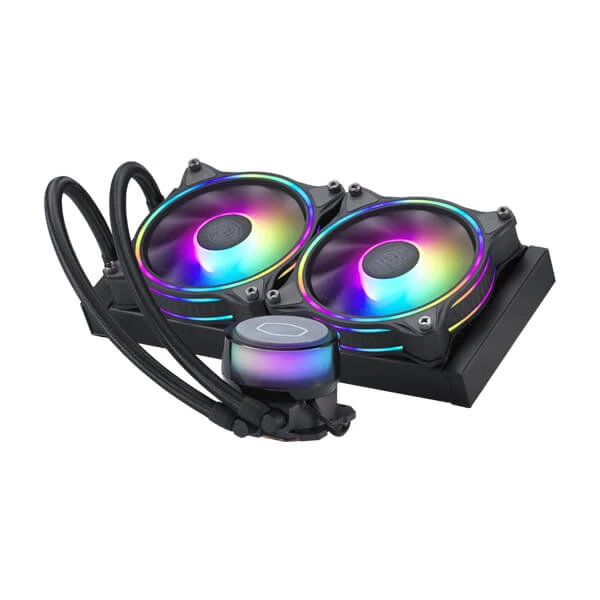

The MasterLiquid ML-Illusion series redefines lighting visuals with all-new design features to the MasterLiquid Series. With 12 Addressable Gen 2 RGB LEDs integrated into the all-new translucent pump, the color options are spectacularly customizable. Complemented with MasterFan MF120 Halo fans lighting features are more than even visual enthusiasts can handle. The Illusion is not only elegant but extremely capable as well, featuring the 3rd generation Dual Chamber Pump for excellent cooling performance.
Stunning lighting visuals with a translucent water chamber dome and rotatable logo. Compatible with software customization.

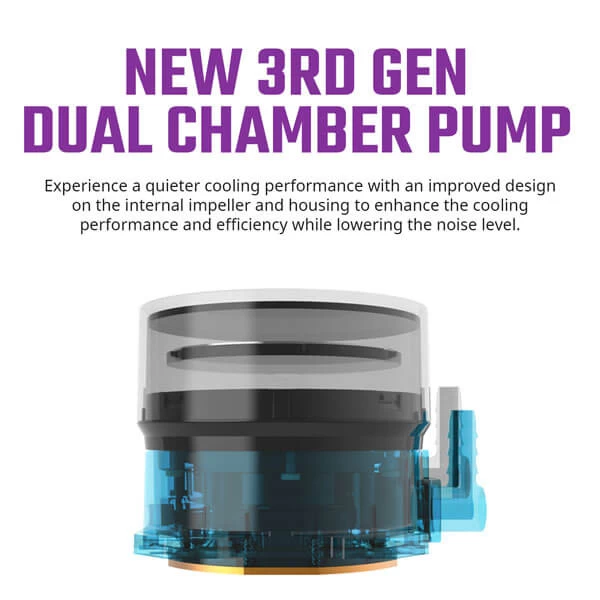

New 3rd Gen Dual Chamber Pump
Experience a quieter cooling performance with an improved design on the internal impeller and housing to enhance the cooling performance and efficiency while lowering the noise level.

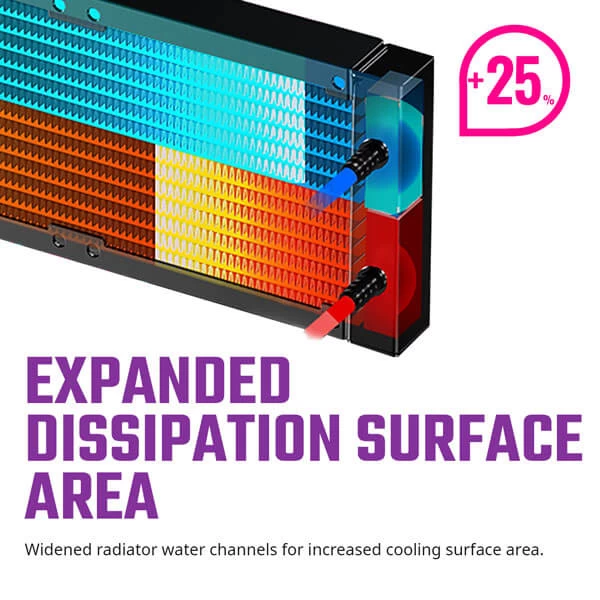

Expanded Dissipation Surface Area
Widened radiator water channels for increased cooling surface area.
Masterfan MF120 Halo
Dual loop Addressable Gen 2 RGB fans with 24 individual ARGB LEDs Fully Customizable with MasterPlus+ software to ensure the most vibrant display of color.
New Addressable Gen 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Master’s MasterPlus+ software Customizing each individual LED in color, effect, brightness, and more – all from an intuitive, convenient interface.
|CPU Socket||LGA1700, LGA1200, LGA2066, LGA2011-v3, LGA2011, LGA1151, LGA1150, LGA1155, LGA1156, AM5, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1|
|Radiator Dimensions||277 x 119.6 x 27.2 mm / 10.9 x 4.7 x 1.1 inch|
|Pump Dimensions||81.4 x 76 x 57.8 mm / 3.2 x 3 x 2.3 inch|
|Pump MTTF||70,000 Hours|
|Pump Noise Level||< 10 dBA|
|Pump Rated Voltage||12 VDC|
|Pump Power Consumption||2.36 W|
|Fan Dimensions (L x W x H)||120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch|
|Fan Quantity||2 PCS|
|Fan LED Type||Addressable Gen 2 RGB|
|Fan Speed||650-1800 RPM ± 10%|
|Fan Airflow||47.2 (Max)|
|Fan Noise Level||6 – 30 dBA|
|Fan Pressure||1.60 mmH₂O (Max)|
|Fan Life Expectancy||160,000 Hours|
|Fan Power Connector||4-Pin (PWM)|
|Fan Rated Voltage||12VDC|
|Fan Rated Current||0.25A|
|Cooler Type||Liquid Cooler|
|Special Note||*LGA1700 mounting kit included since 10/2021, mounting kit required (Free) for products purchased before this date.|
|Note||Compatible with AMD AM5 although the package may not stress it.|
|Note||***Features, Prices, and Specifications are subject to change without notice.|
