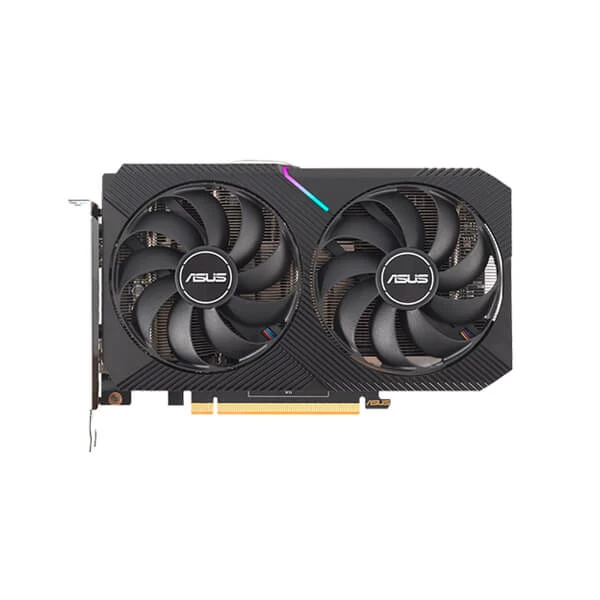

Asus Dual RX 6500 XT 4GB OC Gaming Graphics Card
Features:
ASUS Dual Radeon™ RX 6500 XT OC Edition 4GB GDDR6 with two powerful Axial-tech fans and a 2-slot design for broad compatibility.
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- A 2-slot Design maximizes compatibility and cooling efficiency for superior performance in small chassis.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- Auto-Extreme Technology uses automation to enhance reliability. A protective backplate prevents PCB flex and trace damage.
- A protective backplate prevents PCB flex and trace damage.
| Specification | |
| Graphics engine | Radeon RX 6500 XT |
| Bus Standard | PCI Express 4.0 |
| Opengl | OpenGL®4.6 |
| Video memory | 4GB GDDR6 |
| Engine clock | OC mode: up to 2820 MHz(Boost Clock)/ up to 2670 MHz(Game Clock)
Gaming mode: up to 2820 MHz(Boost Clock)/ up to 2650 MHz(Game Clock) |
| Stream Processors | 1024 |
| Memory Speed | 18 Gbps |
| Memory interface | 64-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | Yes x 1 (Native HDMI 2.1)
Yes x 1 (Native DisplayPort 1.4a) HDCP Support Yes (2.3) |
| Maximum Display Support | 2 |
| NVlink/ Crossfire Support | Yes |
| Accessories | 1 x Collection Card
1 x Speedsetup Manual |
| Software | ASUS GPU Tweak II & Drivers: please download all software from the support site. |
| Recommended power supply | 500W |
| Power Connectors | 1 x 6-pin |
| Dimensions | 201 x 128 x 40 mm
7.9 x 5.03 x 1.57 inch |
| Slot size | 2 Slot |
| Warranty | 3 Years |
| Note* | Price, features, and specifications are subject to change without notice. |
