Description
Features:
Maximum Expansion Potential

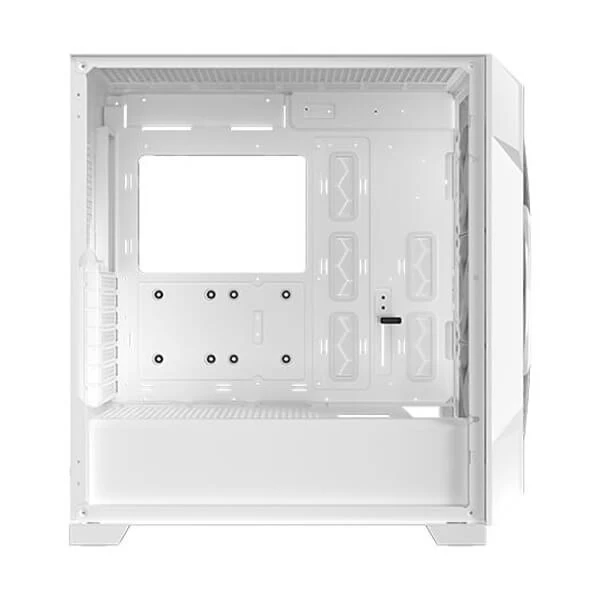

The DP505 White gaming case features an extensive interior and powerful compatibility. 2 x 360mm can be installed in the front & on the top simultaneously.
High-Airflow Mesh Front Panel with X-Shaped Design
Features a massive X-shaped mesh front panel and ventilation on the top, at the bottom, and in the PSU chamber, which will accelerate the airflow circulation and enhance the cooling performance.
ARGB & PWM control Hub
The control hub supports up to 6 fans and 6 LED device. Connect it to your motherboard for 16.8 million possible colors.
Building a clean PC is Within easy Reach
Well-designed cable routing makes wiring easy and simple, with a spacious 23mm of space for cables.
Specification:
| Model | DP505 White |
| Dimensions | 481 x 220 x 490mm (DWH) |
| Form Factor | Mid Tower |
| Materials | Steel + Plastic |
| Mainboard Support | E-ATX, ATX, Micro-ATX, ITX |
| Front Access & Controls | Power, LED control button, USB 3.0 x 2, TYPE-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1Power, LED control button, USB 3.0 x 2, TYPE-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1 |
| Side Panel | 4mm Tempered Glass |
| Drive Bays | |
| Expansion Slots | 7 |
| 3.5″ /2.5″ | 2/2 |
| 2.5″ | 2 |
| Fan | |
| Front | 3 x 120mm / 3 X 140mm / 2 x 185mm |
| Top | 3 x 120mm / 2 x 140mm |
| Power Supply Shroud | 2 x 120mm |
| Rear | 1 x 120mm |
| Included Fan(s) | 3 x 120mm ARGB fans in front |
| Radiator Support | |
| Front | 120/140/240/280/360mm |
| Top | 120/140/240/280/360mm |
| Rear | 120mm |
| Clearance | |
| Max GPU Length | ≤ 375mm |
| Max CPU Cooler Height | ≤ 170mm |
| Max PSU Length |
|
| Cable Routing Space | ≤ 23mm |
| Miscellaneous | |
| Dust Filter | Top / Bottom |
| Net Weight | 8.1 kgs |
| Gross Weight | 9.1 kgs |
| Warranty | 2 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
