Description
Specification:
| Platform | Desktop |
| Market Segment | Mainstream Desktop |
| Product Family | AMD Ryzen™ Processors |
| Product Line |
AMD Ryzen™ 5 Desktop Processors
|
| Consumer Use | Yes |
| Architecture | “Zen 3” |
| CPU Cores | 6 |
| Multithreading (SMT) | Yes |
| Threads | 12 |
| Max. Boost Clock | Up to 4.2GHz |
| Base Clock | 3.6GHz |
| L1 Cache | 384KB |
| L2 Cache | 3MB |
| L3 Cache | 16MB |
| Default TDP | 65W |
| Processor Technology for CPU Cores | TSMC 7nm FinFET |
| CPU Compute Die (CCD) Size | 180mm² |
| Package Die Count | 1 |
| Unlocked for Overclocking | Yes |
| CPU Socket | AM4 |
| Socket Count | 1P |
| Supporting Chipsets | X570, X470, X370, B550, B450 B350, A520 |
| CPU Boost Technology | Precision Boost 2 |
| Instruction Set | x86-64 |
| Supported Extensions | AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64 |

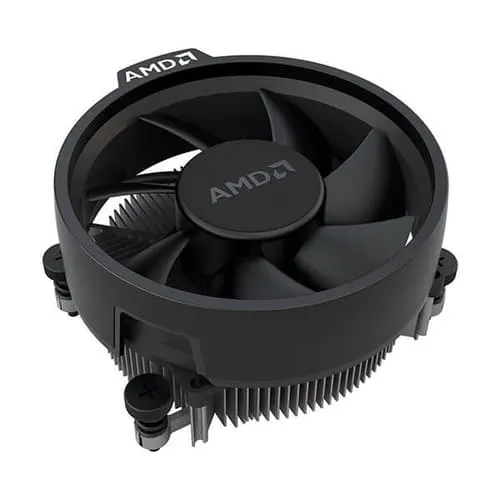

| Thermal Solution (PIB) | AMD Wraith Stealth |
| Max. Operating Temperature (Tjmax) | 90°C |
| *OS Support | Windows 11 – 64-Bit Edition
Windows 8.1 – 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
| Connectivity | |
| Native USB 3.2 Gen 1 (5Gbps) Ports | 0 |
| USB Type-C® Support | Yes |
| Native USB 4 (40Gbps) Ports | 0 |
| Native USB 3.2 Gen 2 (10Gbps) Ports | 4 |
| Native USB 2.0 (480Mbps) Ports | 0 |
| Native SATA Ports | 2 |
| PCI Express® Version | PCIe 3.0 |
| Native PCIe® Lanes (Total/Usable) | 24/20 |
| Additional Usable PCIe Lanes from Motherboard; |
|
| NVMe Support; | Boot, RAID0, RAID1, RAID10 |
| System Memory Type | DDR4 |
| Memory Channels | 2 |
| Max. Memory | 128GB |
| System Memory Subtype | UDIMM notice |
| System Memory Specification | Up to 3200MHz |
| Max Memory Speed |
|
| ECC Support | No |
| Graphics Capabilities | |
| Integrated Graphics | No |
| Graphics Model | Discrete Graphics Card Required |
| & Product ID | 100-100000457BOX |
| Warranty | 3 Years |
| Note | ***Features, pricing, and specifications are subject to change without notice, and items may sometimes be out of stock. |
| Processor | |
| CPU | Ryzen 5 |
| Cores | 6 |
| Series | 5000 Series |
| Memory Type | DDR4 |
| Threads | 12 |
| Socket | AM4 |
| SPEED | 3.6 GHz |
| Speed (Turbo) | 4.2 GHz |
| Cache | 19 MB |
| Max Memory Support | 128 GB |
| Integrated Graphics | No |
| Included Cpu Cooler | Yes |
| Unlocked | Yes |
| TDP | 65W |
| Warranty* | 3 Years |
